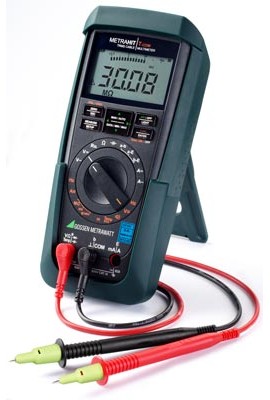

Gossen Metrawatt M246A METRAHit T-COM Cable Multimeter for measurements in symmetrical copper cable networks

Model: M246A

Gossen Metrawatt M246A METRAHit T-COM Cable Multimeter for measurements in symmetrical copper cable networks-

Downloads: datasheet

More Gossen Metrawatt Products

Ask an Expert

Gossen Metrawatt M246A METRAHit T-COM Cable Multimeter for measurements in symmetrical copper cable networks

Model: M246A

Performs measurements for pinpointing errors in cable networks. It measures all cable and system related parameters such as voltage, current, resistance, insulation and loop resistance, capacitance and cable length.

Performs measurements for pinpointing errors in cable networks. It measures all cable and system related parameters such as voltage, current, resistance, insulation and loop resistance, capacitance and cable length.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Trucks and Carts category for similar products.

Or let's do a search and help you find what you need:

Recommended Accessories

Gossen Metrawatt GTZ3240000R0001 METRAWin 10 Software-

Gossen Metrawatt GTZ3240000R0001 METRAWin 10 Software

GTZ3240000R0001

Gossen Metrawatt Z110U KS21-T Cable Set for cable multimeter, CAT II 150 V-

Gossen Metrawatt Z110U KS21-T Cable Set for cable multimeter, CAT II 150 V

Z110U

Gossen Metrawatt Z115A HitBag Multimeter Travel Bag-

Gossen Metrawatt Z115A HitBag Multimeter Travel Bag

Z115A

Gossen Metrawatt Z202B CP330 AC/DC Current Sensor Clamp, 0.5 to 30/5 to 300 A/DC, 10 mV/A AC/DC, 1 mV/A AC/DC-

Gossen Metrawatt Z202B CP330 AC/DC Current Sensor Clamp, 0.5 to 30/5 to 300 A/DC, 10 mV/A AC/DC, 1 mV/A AC/DC

Z202B

Gossen Metrawatt Z216A USB-Hit Interface Adapter for METRAHit Multimeters-

Gossen Metrawatt Z216A USB-Hit Interface Adapter for METRAHit Multimeters

Z216A

Gossen Metrawatt M246A Offers

Features

  • Insulation resistance measurement (test voltage: 100V) with simultaneous detection of interference voltage and polarity reversal for diode testing
  • Cable symmetry testing by means of rapid changeover switching
  • Multifunctional multimeter (V, Ω, F, Hz)
  • True RMS measurement, AC and AC+DC for current and voltage
  • Low-pass filter can be activated (200Hz / -3dB)
  • Direct current measurement, 100nA to 1A
  • Precision temperature indication in °C and °F for Pt100/Pt1000 sensors
  • 3-3/4 place display, 3100 digits, illumination can be activated, analog display: linear or logarithmic for insulation measurement
  • Acoustic signal for continuity testing, dangerous contact voltages, exceeded overload limits
  • Min-Max value storage
  • Data memory and internal clock, power pack adapter socket
  • Housing with IP54 protection, dust and splash protected, protective rubber cover as standard feature
  • Bidirectional infrared interface for exchanging data with a PC
  • New housing design, separate battery and fuse compartments, intelligent key functions with SMD button
  • DAkkS calibration certificate as standard feature

Applications

Ideal for the following applications: Measuring Symmetrical Copper Cable Networks.

Gossen Metrawatt M246A Specifications

Scaling Linear (ranges other than MΩ ISO):±5 to 0 ±30 with 35 scale divisions for, 0 to 30, with 30 scale divisions in all other ranges
Polarity Display With automatic switching
Number of Places 3-3/4 places 3100 steps
Safety Class II per EN 61010-1:2010/VDE 0411-1:2011
Nominal Voltage 600V, 300V
Pollution Degree 2
Click here for complete specifications on the Gossen Metrawatt M246A

What's included with the Gossen Metrawatt M246A

  • M246A Digital Multimeter
  • Protective Rubber Cover
  • F836 Ever Ready Case
  • KS21T Cable Set
  • Batteries
  • Condensed Operating Instructions
  • DAkkS Calibration Certificate
datasheet for the Gossen Metrawatt M246A METRAHit T-COM Cable Multimeter for measurements in symmetrical copper cable networks

Click on a category to view a selection of compatible accessories with the Gossen Metrawatt M246A METRAHit T-COM Cable Multimeter for measurements in symmetrical copper cable networks.

Gossen Metrawatt GTZ3240000R0001 METRAWin 10 Software GTZ3240000R0001
Any METRAHit multimeter can be transformed into a professional, PC-based universal recording system with METRAwin 10 software, and an interface adapter.



Gossen Metrawatt Z110U KS21-T Cable Set for cable multimeter, CAT II 150 V Z110U
Consists of One 2-conductor measurement cable (yellow/blue), 2m long with probes and one earth terminal cable (black), 2m long with probe.



Gossen Metrawatt Z115A HitBag Multimeter Travel Bag Z115A
Cordura belt bag for the METRAHit series of multimeters.



Gossen Metrawatt Z202B CP330 AC/DC Current Sensor Clamp, 0.5 to 30/5 to 300 A/DC, 10 mV/A AC/DC, 1 mV/A AC/DC Z202B
This current sensor is a high-performance instrument for the measurement of inverters, switched-mode power supply units, industrial control systems and other applications which require current measurement or waveform analysis.



Gossen Metrawatt Z203B CP1100 AC/DC Current Sensor Clamp, 0.5 to 100, 5 to 1000 A/DC, 10 mV/A, 1 mV/A AC/DC Z203B
This current sensor is a high-performance instrument for the measurement of inverters, switched-mode power supply units, industrial control systems and other applications which require current measurement or waveform analysis.



Gossen Metrawatt Z216A USB-Hit Interface Adapter for METRAHit Multimeters Z216A
Data is transmitted from the multimeter to the adapter in a electrically isolated, bidirectional fashion, and to the USB interface for PCs and laptops. Snap onto all METRAHit multimeters for use.



Gossen Metrawatt Z216B USB-PACK Interface Adapter for METRAHit Multimeters with software Z216B
Data is transmitted from the multimeter to the adapter in a electrically isolated, bidirectional fashion, and to the USB interface for PCs and laptops. Snap onto all METRAHit multimeters for use.



Ask a question about Gossen Metrawatt M246A METRAHit T-COM Cable Multimeter for measurements in symmetrical copper cable networks

Customer Reviews for the Gossen Metrawatt M246A

Gossen Metrawatt M246A Offers

Features

  • Insulation resistance measurement (test voltage: 100V) with simultaneous detection of interference voltage and polarity reversal for diode testing
  • Cable symmetry testing by means of rapid changeover switching
  • Multifunctional multimeter (V, Ω, F, Hz)
  • True RMS measurement, AC and AC+DC for current and voltage
  • Low-pass filter can be activated (200Hz / -3dB)
  • Direct current measurement, 100nA to 1A
  • Precision temperature indication in °C and °F for Pt100/Pt1000 sensors
  • 3-3/4 place display, 3100 digits, illumination can be activated, analog display: linear or logarithmic for insulation measurement
  • Acoustic signal for continuity testing, dangerous contact voltages, exceeded overload limits
  • Min-Max value storage
  • Data memory and internal clock, power pack adapter socket
  • Housing with IP54 protection, dust and splash protected, protective rubber cover as standard feature
  • Bidirectional infrared interface for exchanging data with a PC
  • New housing design, separate battery and fuse compartments, intelligent key functions with SMD button
  • DAkkS calibration certificate as standard feature

Applications

Ideal for the following applications: Measuring Symmetrical Copper Cable Networks.

Show More...

Gossen Metrawatt M246A Specifications

Scaling Linear (ranges other than MΩ ISO):±5 to 0 ±30 with 35 scale divisions for, 0 to 30, with 30 scale divisions in all other ranges
Polarity Display With automatic switching
Number of Places 3-3/4 places 3100 steps
Safety Class II per EN 61010-1:2010/VDE 0411-1:2011
Nominal Voltage 600V, 300V
Pollution Degree 2
Click here for complete specifications on the Gossen Metrawatt M246A

What's included with the Gossen Metrawatt M246A

  • M246A Digital Multimeter
  • Protective Rubber Cover
  • F836 Ever Ready Case
  • KS21T Cable Set
  • Batteries
  • Condensed Operating Instructions
  • DAkkS Calibration Certificate
datasheet for the Gossen Metrawatt M246A METRAHit T-COM Cable Multimeter for measurements in symmetrical copper cable networks

Click on a category to view a selection of compatible accessories with the Gossen Metrawatt M246A METRAHit T-COM Cable Multimeter for measurements in symmetrical copper cable networks.

Gossen Metrawatt GTZ3240000R0001 METRAWin 10 Software GTZ3240000R0001
Any METRAHit multimeter can be transformed into a professional, PC-based universal recording system with METRAwin 10 software, and an interface adapter.



Gossen Metrawatt Z110U KS21-T Cable Set for cable multimeter, CAT II 150 V Z110U
Consists of One 2-conductor measurement cable (yellow/blue), 2m long with probes and one earth terminal cable (black), 2m long with probe.



Gossen Metrawatt Z115A HitBag Multimeter Travel Bag Z115A
Cordura belt bag for the METRAHit series of multimeters.



Gossen Metrawatt Z202B CP330 AC/DC Current Sensor Clamp, 0.5 to 30/5 to 300 A/DC, 10 mV/A AC/DC, 1 mV/A AC/DC Z202B
This current sensor is a high-performance instrument for the measurement of inverters, switched-mode power supply units, industrial control systems and other applications which require current measurement or waveform analysis.



Gossen Metrawatt Z203B CP1100 AC/DC Current Sensor Clamp, 0.5 to 100, 5 to 1000 A/DC, 10 mV/A, 1 mV/A AC/DC Z203B
This current sensor is a high-performance instrument for the measurement of inverters, switched-mode power supply units, industrial control systems and other applications which require current measurement or waveform analysis.



Gossen Metrawatt Z216A USB-Hit Interface Adapter for METRAHit Multimeters Z216A
Data is transmitted from the multimeter to the adapter in a electrically isolated, bidirectional fashion, and to the USB interface for PCs and laptops. Snap onto all METRAHit multimeters for use.



Gossen Metrawatt Z216B USB-PACK Interface Adapter for METRAHit Multimeters with software Z216B
Data is transmitted from the multimeter to the adapter in a electrically isolated, bidirectional fashion, and to the USB interface for PCs and laptops. Snap onto all METRAHit multimeters for use.



Ask a question about Gossen Metrawatt M246A METRAHit T-COM Cable Multimeter for measurements in symmetrical copper cable networks

Customer Reviews for the Gossen Metrawatt M246A
