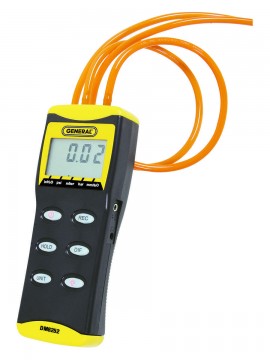

This digital manometer measures gauge or differential pressure from 0 to 2 psi with 0.004 psi resolution and ±0.3% accuracy, ideal for low, static, or negative pressure applications.
This digital manometer measures gauge or differential pressure from 0 to 2 psi with 0.004 psi resolution and ±0.3% accuracy, ideal for low, static, or negative pressure applications.
Features
| Measurement Range/Resolution | 0 to 2 psi/0.004 psi |
| Measurement Accuracy | ±0.3% of full-scale value |
| Response Time | 0.5 seconds |
| Auto Power Off | After 20 minutes of inactivity |
| Operating Temperature | 32 to 122°F (0 to 50°C) at <80%RH |
| Power Source | "9V" battery (included) or optional #Z110VADPT 9V AC adaptor |
| Combined Accuracy | ±1% of full scale |
| Dimensions of Connection Hoses | 20" (500 mm) long 0.24" (6 mm) I.D. 0.35" (9 mm) O.D. |
| Dimensions | 7.2 x 2.8 x 1.2" (182 x 72 x 30 mm) |
| Weight | 7.8 oz (220 g) |
| Measurement Range/Resolution | 0 to 2 psi/0.004 psi |
| Measurement Accuracy | ±0.3% of full-scale value |
| Response Time | 0.5 seconds |
| Auto Power Off | After 20 minutes of inactivity |
| Operating Temperature | 32 to 122°F (0 to 50°C) at <80%RH |
| Power Source | "9V" battery (included) or optional #Z110VADPT 9V AC adaptor |
| Combined Accuracy | ±1% of full scale |
| Dimensions of Connection Hoses | 20" (500 mm) long 0.24" (6 mm) I.D. 0.35" (9 mm) O.D. |
| Dimensions | 7.2 x 2.8 x 1.2" (182 x 72 x 30 mm) |
| Weight | 7.8 oz (220 g) |
