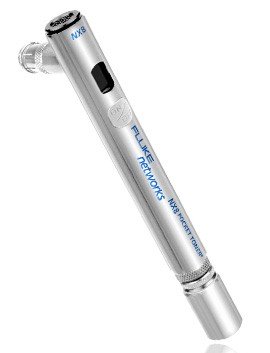

Fluke Networks PTNX8 Pocket Toner NX8

Fluke Networks PTNX8 Pocket Toner NX8

Model: PTNX8

Fluke Networks PTNX8 Pocket Toner NX8

Model: PTNX8

The pocket toner NX8 tests up to 8 cables at once for continuity, shorts, opens, 50-75 Ω termination, and polarity with dial tone detective adapter.

The pocket toner NX8 tests up to 8 cables at once for continuity, shorts, opens, 50-75 Ω termination, and polarity with dial tone detective adapter.

Sale Price $73.24 CAD
Regular Price $81.83 CAD
Availability 2 to 3 Weeks
Quantity

Fluke Networks PTNX8 Offers

Features

  • Easy-to-read indicators
  • Low-voltage circuit protection for both the unit as well as the detachable cable toner
  • Dual audible indicators in the main body and detachable buzzer toner units
  • Removable push on connectors
  • Auto shut-off
  • Male and female adaptable toner section
  • Removable push-on connector
  • Lightweight, durable anodized aluminum body

Fluke Networks PTNX8 Specifications

Approximate Distance RG6: 300 m (1,000 ft)
Output Voltage in Continuity Mode 3.6 Vdc (with a new battery)
Toner Frequency Main unit: 2.7 kHz. Toner cap: 2.3 kHz
Maximum Input Voltage 60 Vdc
Battery Type 1.5 V AAA alkaline
Auto Shut-Off 10 minutes
Operating Temperature --4 to 149°F (-20 to 65°C)
Storage Temperature -22 to 158°F (-30 to 70°C)
Altitude >3,000 m (10,000 ft) maximum
Relative Humidity 5 to 95% (non-condensing)
Dimensions and Weight 5.4 x 0.6" (138 x 15 mm), 2.2 oz (62.4 g)

What's included with the Fluke Networks PTNX8

  • Pocket Toner NX8
  • NX8 unit
  • Toner
  • F-type (M-push, Speed 81) adapters
  • AAA battery
  • Deluxe case with belt clip
