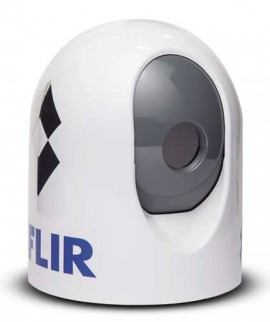

FLIR MD324 Compact Fixed-View Marine Thermal Camera with joystick controller, 30 Hz

The World's Sixth Sense™

FREE STUFF! VALUE ADDED KITS!

FREE SHIPPING ON ONLINE ORDERS OVER $99*

FLIR MD324 Compact Fixed-View Marine Thermal Camera with joystick controller, 30 Hz

Model: MD324 | Order No: 432-0010-11-00

FLIR MD324 Compact Fixed-View Marine Thermal Camera with joystick controller, 30 Hz

Model: MD324 | Order No: 432-0010-11-00

The marine camera provides night-vision and other video streaming for watercraft operators. It's equipped for worry-free mounting at the helm or other parts of a vessel.

The marine camera provides night-vision and other video streaming for watercraft operators. It's equipped for worry-free mounting at the helm or other parts of a vessel.

Your Price $5324.00 CAD
Availability 2 to 3 Weeks
Quantity

FLIR MD324 Offers



The FLIR MD324 Compact Fixed-View Marine Thermal Camera with joystick controller is a compact, all-weather tool that can assist with marine navigation and search and rescue operations. Thanks to its high-resolution thermal sensor, watercraft operators can spot other vessels, obstacles and more in pitch darkness and even midday glare. Plus, since it's Ethernet enabled, you can seamlessly integrate it into your vessel's existing system.

Features

  • Detects a range of targets in many light conditions
  • Allows you to safely navigate their vessels when visibility is low
  • Rugged, waterproof housing allows for worry-free mounting at the helm or other part of your vessel
  • Equipped for Ethernet connection into existing systems
  • Compatible with select FLIR accessories (sold separately) for additional functionality
  • FLIR Proprietary Digital Detail Enhancement for clear video capture
  • Resistant to shock, lightning, sand and more
  • Offers NTSC or PAL video output for your convenience
  • Pans and tilts to provide you with an optimal view

Application Note: Detecting elevated body temperatures is often our first line of defense

The purpose of this screening is to differentiate people who are well from those who have a fever. We'll walk you through the correct use of the instruments and how to value the results they provide you with.

Read our note on how to detect body temperatures

FLIR MD324 Specifications


Infrared Resolution320 x 240 (thermal resolution)
Field Of View24 x 18° (NTSC)
Digital Zoom2x (thermal E-zoom)
Connector TypesF-type BNC with BNC-to-RCA adapter included for video output
Operating Temperature-13 to 131°F (-25 to 55°C)
Storage Temperature-40 to 185°F (-40 to 85°C)
Power RequirementsPoE injector required per IEEE 802.3af
ApprovalsEMI, salt mist, vibration: IEC 60945; sand and dust, vibration: Mil-Std-810E
Product Width6" (15.2 cm) diameter (thermal camera)
Product Height7" (17.8 cm) (thermal camera)
Product Weight3 lbs (1.4 kg) (thermal camera)

What's included with the FLIR MD324


  • Thermal Camera With 5" (12.7 cm) Cable
  • Joystick Controller
  • Ethernet (PoE-Powered Device)
  • Operator Manual CD
  • 2-Year Warranty

Customer Reviews for the FLIR MD324

Ask a question about FLIR MD324 Compact Fixed-View Marine Thermal Camera with joystick controller, 30 Hz

FLIR MD324 Offers



The FLIR MD324 Compact Fixed-View Marine Thermal Camera with joystick controller is a compact, all-weather tool that can assist with marine navigation and search and rescue operations. Thanks to its high-resolution thermal sensor, watercraft operators can spot other vessels, obstacles and more in pitch darkness and even midday glare. Plus, since it's Ethernet enabled, you can seamlessly integrate it into your vessel's existing system.

Features

  • Detects a range of targets in many light conditions
  • Allows you to safely navigate their vessels when visibility is low
  • Rugged, waterproof housing allows for worry-free mounting at the helm or other part of your vessel
  • Equipped for Ethernet connection into existing systems
  • Compatible with select FLIR accessories (sold separately) for additional functionality
  • FLIR Proprietary Digital Detail Enhancement for clear video capture
  • Resistant to shock, lightning, sand and more
  • Offers NTSC or PAL video output for your convenience
  • Pans and tilts to provide you with an optimal view

FLIR MD324 Specifications


Infrared Resolution320 x 240 (thermal resolution)
Field Of View24 x 18° (NTSC)
Digital Zoom2x (thermal E-zoom)
Connector TypesF-type BNC with BNC-to-RCA adapter included for video output
Operating Temperature-13 to 131°F (-25 to 55°C)
Storage Temperature-40 to 185°F (-40 to 85°C)
Power RequirementsPoE injector required per IEEE 802.3af
ApprovalsEMI, salt mist, vibration: IEC 60945; sand and dust, vibration: Mil-Std-810E
Product Width6" (15.2 cm) diameter (thermal camera)
Product Height7" (17.8 cm) (thermal camera)
Product Weight3 lbs (1.4 kg) (thermal camera)

What's included with the FLIR MD324


  • Thermal Camera With 5" (12.7 cm) Cable
  • Joystick Controller
  • Ethernet (PoE-Powered Device)
  • Operator Manual CD
  • 2-Year Warranty

Ask a question about FLIR MD324 Compact Fixed-View Marine Thermal Camera with joystick controller, 30 Hz

Customer Reviews for the FLIR MD324
