A feature-rich thermal imaging camera designed to be fully compliant with the NFPA 1801-2018 Standard for Thermal Imagers covering usability, image quality, and durability for firefighting. Firefighters can see more clearly in the harshest environments, maneuver more strategically, stay better oriented, and find victims faster.
A feature-rich thermal imaging camera designed to be fully compliant with the NFPA 1801-2018 Standard for Thermal Imagers covering usability, image quality, and durability for firefighting. Firefighters can see more clearly in the harshest environments, maneuver more strategically, stay better oriented, and find victims faster.
NO LONGER AVAILABLE!
This product is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
Description
Specifications
Powerful Tools
Included
Videos
Resources
Accessories
Forum
Customer ReviewsThis thermal imager for fire-fighting provides the highest level of standard for thermal imagers in the industry. With its NFPA compliance you can be sure its usability, image quality and durability is to the upmost standard. This camera is controlled by three easy large buttons designed for glove operation and features FSX, Flexible Scene Enhancement technology which enhances thermal images through real-time digital processing inside the camera.
Features
Applications
NFPA 1801 compliant
An advanced, feature-rich thermal imaging camera that is designed to be fully compliant with the National Fire Protection Association® (NFPA) 1801-2018 Standard for Thermal Imagers covering usability, image quality, and durability for firefighting.
Easy-to-use, even with gloves on
Features an intuitive and simple user interface and can be controlled by 3 large buttons on top of the unit - ideal for a gloved firefighter's hand.

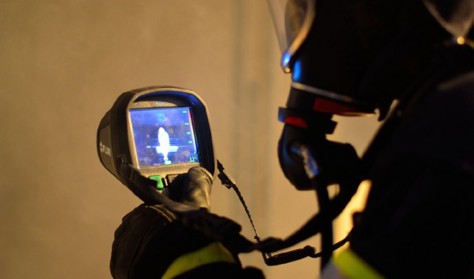

A thermal imaging camera should be easy to operate with a gloved hand.
Clear and crisp thermal images
The thermal imager's maintenance free uncooled microbolometer sensor produces crisp images at 320 x 240 pixels. Thermal images are displayed on a large bright 4" LCD. It also has FSX™ Flexible Scene Enhancement technology which enhances thermal images through real-time digital processing inside the camera. The result is an ultra-sharp image that shows extraordinary structural, edge, and other instantly-recognizable detail. This helps make it much easier for firefighters and rescue teams to find their way through the smokiest, darkest environments, and to instantly identify targets in scenes with extreme temperature dynamics.
Left: Without FSX™; Right With FSX™
Left: Without FSX™; Right With FSX™
Rugged & reliable
Designed to meet tough operating conditions. It withstands a drop from 2 meters onto a concrete floor, is water resistant (IP67) and fully operating up to 500°F (260°C) for 5 minutes.
Firefighters sometimes operate in potentially explosive environments, such as oil platforms, petro-chemical or power generation industries. That is why the NFPA-compliant thermal imager also meets the HazLoc standard, meaning that it is suitable for use in hazardous, potentially explosive conditions. As possible ignition sources, the K65's USB port and battery compartment are well protected, in such a way that they cannot be opened during normal operational conditions or operational maintenance. They are sealed to restrict entry of an external atmosphere.
Fully sealed connectors
Battery locks inside the camera with screw
| Thermal Imaging and Optical Data | |
| IR Resolution | 320 x 240 (76,800 pixels) |
| Thermal Sensitivity/NETD | <40 mK @ 86°F (30°C) |
| Start-Up Time | <17 sec (IR image, no GUI) |
| Sensibilité thermique | <30 mK |
| Refresh Rate | 60 Hz |
| Field of View (FOV) | 51 x 38° |
| Focal Plane Array | Uncooled microbolometer, 7.5 to 13 μm |
| Image Presentation | |
| Display | 320 x 240 pixel, 4" backlit LCD |
| Auto-Range | Yes, mode-dependent |
| Image Modes | TI Basic NFPA firefighting; Black-and-white firefighting; Fire; Search-and-rescue; Heat detection |
| Flexible Scene Enhancement (FSX®) | Yes |
| Measurement | |
| Object Temperature Range | -4 to 302°F (-20 to 150°C); 32 to 1202°F (0 to 650°C) |
| Accuracy | ±7.2°F (±4°C) or ±4% of reading for ambient temperature 50 to 95°F (10 to 35°C) |
| Spotmeters | 1 |
| Isotherm | Yes, according to NFPA and mode-dependent |
| Automatic Heat Detection | Heat-detection mode (hottest 20% of scene is colorized) |
| Data Storage, Transfer, and Compatibility | |
| USB Type | USB mini-B |
| Interfaces | Update from PC devices |
| Compatibility | Works with FLIR Tools software |
| Image/Video Storage | Up to 200 image or video files (max. duration of 5 min) |
| Video Streaming | Uncompressed video over USB |
| General Specifications | |
| Operating Temperature Range | -4 to 185°F (-20 to 85°C) - infinity 302°F (150°C) - 15 minutes 500°F (260°C) - 5 minutes |
| Storage Temperature Range | -40 to 185°F (-40 to 85°C) |
| Battery | Type: Li-ion, 3.6 V rechargeable Life: Approximately 4 hours at 77°F (25°C) and with typical use |
| Charging Time | 2 h to 85% capacity |
| Directives | Independently certified according to NFPA 1801:2018 specification: Vibration, Impact acceleration resistance, Corrosion, Viewing surface abrasion, Heat resistance, Heat and flame, Product label durability |
| Drop Test | 6.6' (2 m) |
| Dimensions | 4.7 x 4.9 x 11" (120 x 125 x 280 mm) |
| Weight | 2.4 lbs (1.1 kg) with battery |
| Tripod Mount | UNC ¼"-20 |
Thermal imagers or thermal imaging cameras (TIC) were once restricted to use by the military, however, this technology has been declassified and is now becoming a very useful tool for the fire service. Thermal Imaging Equipment can provide first responders with critical information to size up a fire incident, track fire growth, and to locate victims, other first responders, and egress routes. The need for standardized performance evaluation methods arise as TIC use increases and fire fighters begin to consider them essential equipment. These devices represent a significant investment.
The environment encountered by fire fighters varies, depending on the nature of the fire scenario. Decades of fire testing have shown that the gas temperature in a naturally ventilated burning room stratifies, due to buoyancy, into a hot upper layer that contains combustion byproducts and a cooler lower layer comprised mainly of ambient air. The time-varying severity of conditions in the room of fire origin and adjacent or nearby rooms will change depending on the type and amount of materials burning, thermal properties of the room surfaces, the ventilation conditions, the size of the room, and a number of other factors. As any fire fighter will gladly explain, no two fires are exactly the same. For this reason, incorporating the chaotic and dynamic nature of fire conditions into readily controlled, reproducible, and repeatable tests that will be performed by numerous parties is a difficult task.
TIC In Use
A typical situation in which a TIC is used may involve a residential or commercial fire, where furnishings, structural materials, electrical appliances, or other materials burn in a flaming or smoldering mode. As these commodities burn, smoke and combustion byproducts such as carbon dioxide (CO2) and water (H2O) will be produced in large quantities. In these conditions fire fighters frequently cannot see through the smoke. Sometimes fire fighters are called to an event in which someone suspects that a fire is starting but cannot pinpoint the fire source. In this case there may not be a large amount of smoke, but without a TIC the fire fighter may need to create many holes in walls and ceilings in order to find the problem.
Operating Conditions
There are two basic ways in which operating conditions affect TIC: first, the camera itself must be rugged enough to function in elevated temperatures and humidity, and to withstand other adverse conditions imposed on it by the operational environment and by the fire fighter; and second, the TIC must be capable of producing images that provide useful information to the user. Image quality tests address the ability of the TIC to capture an infrared scene with sufficient sensitivity and detail to enable the user to perform a particular activity, such as searching for a fire victim.
TIC Robustness
During the course of a fire emergency event, a TIC may be subjected to high pressure salt or fresh water spray, it may be submerged in water, it may tumble down a flight of stairs, it may fall from a height of 2 meters or more, and it may spend time rolling around the floor of a fire truck on the way to the event. Then there are the effects of the fire to consider: flames and heat. The TIC should not interfere with or be interfered with by other electronic equipment. It should not be a shock hazard to the user and it should not be the source of an ignition or explosion. The TIC robustness performance for all of these operational conditions can be evaluated using established laboratory-based test methods, in some cases with slight modification.
Image Quality
Evaluating the performance of TIC with respect to image quality is more complicated than evaluating TIC robustness. Established laboratory-based test methods have not been developed for the special high-heat, wide- temperature-range conditions in which fire fighters routinely operate. The field of view of the TIC must be wide enough that a fire fighter can use it to navigate in an unfamiliar structure with visibility of less than 15 cm and still be able to see enough detail in the image to understand what is there. Given a minimum field of view, the TIC must still be capable of providing sufficient spatial resolution for the user to identify important objects. There may easily be situations in which both water and flames are present, which challenges the ability of the TIC to respond across a wide range of temperatures (dynamic range). In this situation, the fire fighter may be looking for another fire fighter, a civilian victim, or an egress route and would need to see these objects of intermediate temperature in spite of the flames and/or water. In another scenario a fire fighter may need to see relatively small differences in ambient temperature, for example when looking at the level of hazardous material in a container to determine which container is leaking. At higher temperatures, a fire fighter may look at a hot ceiling for the most appropriate place to vent. For these operations the TIC must have a thermal sensitivity that permits enough contrast in the image for the user to perform the task.
Click on a category to view a selection of compatible accessories with the FLIR K65 Fire Protection Thermal Imager (TIC), NFPA compliant, 76,800 pixels (320 x 240).
| Thermal Imaging and Optical Data | |
| IR Resolution | 320 x 240 (76,800 pixels) |
| Thermal Sensitivity/NETD | <40 mK @ 86°F (30°C) |
| Start-Up Time | <17 sec (IR image, no GUI) |
| Sensibilité thermique | <30 mK |
| Refresh Rate | 60 Hz |
| Field of View (FOV) | 51 x 38° |
| Focal Plane Array | Uncooled microbolometer, 7.5 to 13 μm |
| Image Presentation | |
| Display | 320 x 240 pixel, 4" backlit LCD |
| Auto-Range | Yes, mode-dependent |
| Image Modes | TI Basic NFPA firefighting; Black-and-white firefighting; Fire; Search-and-rescue; Heat detection |
| Flexible Scene Enhancement (FSX®) | Yes |
| Measurement | |
| Object Temperature Range | -4 to 302°F (-20 to 150°C); 32 to 1202°F (0 to 650°C) |
| Accuracy | ±7.2°F (±4°C) or ±4% of reading for ambient temperature 50 to 95°F (10 to 35°C) |
| Spotmeters | 1 |
| Isotherm | Yes, according to NFPA and mode-dependent |
| Automatic Heat Detection | Heat-detection mode (hottest 20% of scene is colorized) |
| Data Storage, Transfer, and Compatibility | |
| USB Type | USB mini-B |
| Interfaces | Update from PC devices |
| Compatibility | Works with FLIR Tools software |
| Image/Video Storage | Up to 200 image or video files (max. duration of 5 min) |
| Video Streaming | Uncompressed video over USB |
| General Specifications | |
| Operating Temperature Range | -4 to 185°F (-20 to 85°C) - infinity 302°F (150°C) - 15 minutes 500°F (260°C) - 5 minutes |
| Storage Temperature Range | -40 to 185°F (-40 to 85°C) |
| Battery | Type: Li-ion, 3.6 V rechargeable Life: Approximately 4 hours at 77°F (25°C) and with typical use |
| Charging Time | 2 h to 85% capacity |
| Directives | Independently certified according to NFPA 1801:2018 specification: Vibration, Impact acceleration resistance, Corrosion, Viewing surface abrasion, Heat resistance, Heat and flame, Product label durability |
| Drop Test | 6.6' (2 m) |
| Dimensions | 4.7 x 4.9 x 11" (120 x 125 x 280 mm) |
| Weight | 2.4 lbs (1.1 kg) with battery |
| Tripod Mount | UNC ¼"-20 |
Thermal imagers or thermal imaging cameras (TIC) were once restricted to use by the military, however, this technology has been declassified and is now becoming a very useful tool for the fire service. Thermal Imaging Equipment can provide first responders with critical information to size up a fire incident, track fire growth, and to locate victims, other first responders, and egress routes. The need for standardized performance evaluation methods arise as TIC use increases and fire fighters begin to consider them essential equipment. These devices represent a significant investment.
The environment encountered by fire fighters varies, depending on the nature of the fire scenario. Decades of fire testing have shown that the gas temperature in a naturally ventilated burning room stratifies, due to buoyancy, into a hot upper layer that contains combustion byproducts and a cooler lower layer comprised mainly of ambient air. The time-varying severity of conditions in the room of fire origin and adjacent or nearby rooms will change depending on the type and amount of materials burning, thermal properties of the room surfaces, the ventilation conditions, the size of the room, and a number of other factors. As any fire fighter will gladly explain, no two fires are exactly the same. For this reason, incorporating the chaotic and dynamic nature of fire conditions into readily controlled, reproducible, and repeatable tests that will be performed by numerous parties is a difficult task.
TIC In Use
A typical situation in which a TIC is used may involve a residential or commercial fire, where furnishings, structural materials, electrical appliances, or other materials burn in a flaming or smoldering mode. As these commodities burn, smoke and combustion byproducts such as carbon dioxide (CO2) and water (H2O) will be produced in large quantities. In these conditions fire fighters frequently cannot see through the smoke. Sometimes fire fighters are called to an event in which someone suspects that a fire is starting but cannot pinpoint the fire source. In this case there may not be a large amount of smoke, but without a TIC the fire fighter may need to create many holes in walls and ceilings in order to find the problem.
Operating Conditions
There are two basic ways in which operating conditions affect TIC: first, the camera itself must be rugged enough to function in elevated temperatures and humidity, and to withstand other adverse conditions imposed on it by the operational environment and by the fire fighter; and second, the TIC must be capable of producing images that provide useful information to the user. Image quality tests address the ability of the TIC to capture an infrared scene with sufficient sensitivity and detail to enable the user to perform a particular activity, such as searching for a fire victim.
TIC Robustness
During the course of a fire emergency event, a TIC may be subjected to high pressure salt or fresh water spray, it may be submerged in water, it may tumble down a flight of stairs, it may fall from a height of 2 meters or more, and it may spend time rolling around the floor of a fire truck on the way to the event. Then there are the effects of the fire to consider: flames and heat. The TIC should not interfere with or be interfered with by other electronic equipment. It should not be a shock hazard to the user and it should not be the source of an ignition or explosion. The TIC robustness performance for all of these operational conditions can be evaluated using established laboratory-based test methods, in some cases with slight modification.
Image Quality Evaluating the performance of TIC with respect to image quality is more complicated than evaluating TIC robustness. Established laboratory-based test methods have not been developed for the special high-heat, wide- temperature-range conditions in which fire fighters routinely operate. The field of view of the TIC must be wide enough that a fire fighter can use it to navigate in an unfamiliar structure with visibility of less than 15 cm and still be able to see enough detail in the image to understand what is there. Given a minimum field of view, the TIC must still be capable of providing sufficient spatial resolution for the user to identify important objects. There may easily be situations in which both water and flames are present, which challenges the ability of the TIC to respond across a wide range of temperatures (dynamic range). In this situation, the fire fighter may be looking for another fire fighter, a civilian victim, or an egress route and would need to see these objects of intermediate temperature in spite of the flames and/or water. In another scenario a fire fighter may need to see relatively small differences in ambient temperature, for example when looking at the level of hazardous material in a container to determine which container is leaking. At higher temperatures, a fire fighter may look at a hot ceiling for the most appropriate place to vent. For these operations the TIC must have a thermal sensitivity that permits enough contrast in the image for the user to perform the task.
Click on a category to view a selection of compatible accessories with the FLIR K65 Fire Protection Thermal Imager (TIC), NFPA compliant, 76,800 pixels (320 x 240).
