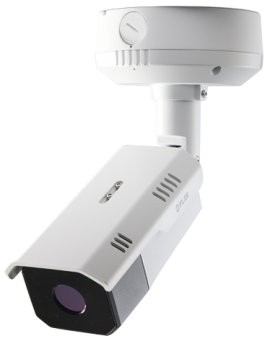

The Flir FCB-Series AI is an advanced thermal security camera built for commercial perimeter protection. Combining superior 20 mK thermal imaging with AI-powered classification, threats are identified early, even in darkness, fog, or rain. Additionally, this model has an FOV of 24.3 x 19.5°, an f/number of f/1.0, and a focal length of 18 mm.
The Flir FCB-Series AI is an advanced thermal security camera built for commercial perimeter protection. Combining superior 20 mK thermal imaging with AI-powered classification, threats are identified early, even in darkness, fog, or rain. Additionally, this model has an FOV of 24.3 x 19.5°, an f/number of f/1.0, and a focal length of 18 mm.
The Flir FCB-Series AI integrates seamlessly into existing security systems, making it a practical and cost-effective upgrade to ageing infrastructure. The Flir multilayered approach keeps budgets manageable while delivering continuous improvements in protection, evolving with your site, so you stay ahead of threats without overspending.
Features
Applications
The Flir FCB-Series AI provides:
Smart Design, Deployed Seamlessly
In today’s dynamic threat landscape, a single breach can lead to financial, operational, and reputational damage. Flir’s multilayered approach integrates intelligent imaging, radar, and analytics to deliver:
Flir Nexus in Action
Flir’s communication protocol that bridges the gap between edge devices—cameras, radar, and sensors— without the need for centralized software or servers.
Nexus gives you:
DESIGN WITH RAVEN. DEPLOY WITH NEXUS.
Flir Raven is the go-to site planning tool for security professionals. With Raven you can:
Once your site is designed in Raven, deploy your solution using Nexus-enabled devices for real-time, intelligent threat detection and tracking—without the complexity of traditional systems.
| Overview | |
| Array Format | VGA: 640 × 512, QVGA: 320 × 256 |
| Detector Type | Long-life, uncooled, sun-safe VOx microbolometer |
| Spectral Range | 8 μm to 14 μm |
| Effective Resolution | VGA: 327,680 pixels, QVGA: 81,920 pixels |
| Pixel Pitch | 12 μm |
| Thermal Frame Rate | 30 Hz |
| Focus | Athermalized, focus-free |
| Sensitivity | VGA: <20 mK, QVGA: <30 mK |
| Video | |
| IP Video | Two independent H.265/H.264/MJPEG streams |
| Streaming Resolution | VGA: 640 × 512, QVGA: 320 × 256 |
| Thermal Image Settings | Brightness, Contrast, Sharpness, Auto AGC, Digital Detail Enhancement (DDE), Gamma, Smart Screen Optimization |
| Thermal AGC Region of Interest | Default, Presets, and User definable to ensure optimal image quality on subjects of interest |
| Analytics Management | Web-based configuration and management; masking of analytic detection areas, adjustable sensitivity, automatic responses, remote I/O control |
| Analytics Features | Region entrance/Intrusion detection, Crossover/fence trespassing, CNN classifier |
| Image Uniformity Optimization | Automatic flat field correction (FFC); thermal and temporal triggers |
| Storage Support | Up to 2TB SD card (sold separately) |
| System Integration | |
| Ethernet | 10/100/1000 IEEE 802.3, auto sensing 1 × RJ45 |
| External Analytics Compatible | Yes |
| Control Input/Output Network | 1 × dry contact in; 1 × relay out (rated load: 0.025 A at 5 VDC) |
| APIs | NEXUS SDK, NEXUS CGI, ONVIF Profile S, G, T |
| Network | |
| Supported Protocols | IPv4, HTTP, HTTPS, UPnP, DNS,NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, ONVIF Profile G/T/S |
| General | |
| Weight With Sunshield | 2.34 kg |
| Dimensions (W × H × L) | 96.9 × 85.4 × 378 mm (3.8 × 3.4 × 14.9 in.) |
| Input Voltage | Source: Heater off Heater on (at 100%) PoE+ (802.3at): 6.8 W 13.5 W 12 VDC: 7.2 W 12.4 W 24 VAC (VA): 7.0 W 12.5 W |
| Environmental | |
| Ingress Rating | IP67, NEMA 4X |
| Operating Temperature | -40°C to 60°C/-40°F to 140°F (cold start) |
| Storage Temperature | -50°C to 85°C (-58°F to 185°F) |
| Humidity | 0-95% relative humidity |
| Shock & Vibration | ISTA 3A |
| Vandalism | Yes (except windows) |
| De-fog | Built in heaters |
| Warranty & Regulatory | |
| Warranty | Camera: 3 years / Sensor: 10 years |
| EMC | CE marked (EN 55032 & EN 55035) , EN 61000-6-3, EN 50130-4, FCC Part 15 (subpart B, class A) |
| International | RoHS, WEEE, UKCA, ICES-003, AS/NSZ CISPR 32 |
| Safety | CB Scheme IEC 62368-1:2018, IEC 62471 CB scheme IR led individually. Comply with IEC62368-1:2020+A112020 |
Click on a category to view a selection of compatible accessories with the FLIR FCB-624 AI Thermal AI Analytics Camera, 24.3 x 19.5°, 18 mm.
