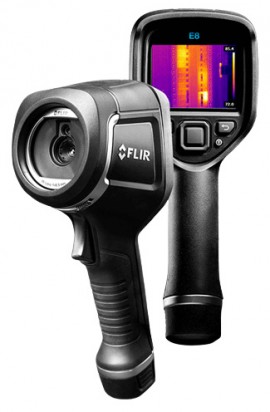

Easy-to-use troubleshooting for building, electrical, and mechanical applications, this camera finds hidden problems, takes accurate temperature readings, and confirms repairs easily with its 320 x 240 resolution and MSX enhancements. In addition, the built-in Wi-Fi uploads and shares images and data through the FLIR Tools app.
Easy-to-use troubleshooting for building, electrical, and mechanical applications, this camera finds hidden problems, takes accurate temperature readings, and confirms repairs easily with its 320 x 240 resolution and MSX enhancements. In addition, the built-in Wi-Fi uploads and shares images and data through the FLIR Tools app.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
Rugged and dependable, this thermal camera comes with a four-hour operating time, interchangeable batteries, a 6.6' (2 m) drop test, and an IP54 rating making it the perfect addition to your tool bag.
Easy to use
The intuitive graphic interface simplifies measurements in both thermal and MSX modes.
Convenient to share images and findings
Download images, create reports, and share what you've found instantly.
Compact and rugged
Built for portability and safe, efficient use in harsh environments.
Applications
| IR Resolution | 320 x 240 (76,800 pixels) |
| Thermal Sensitivity/NETD | <0.09°F (0.05°C)/<50 mK |
| Spatial Resolution (IFOV) | 2.6 mrad |
| Field of View (FOV) | 45 x 34° |
| F-number | 1.5 |
| Image Frequency | 9 Hz |
| Focus | Focus-free |
| Detector Data | Detector type: Focal Plane Array (FPA), uncooled microbolometer Spectral range: 7.5 to 13 µm |
| Measurement and Analysis | Object temperature range: -4 to 1022°F (-20 to 550°C) in two ranges Accuracy: ±3.6°F (±2°C) or ±2% of reading for ambient temperature 50 to 95°F (10 to 35°C) and object temperature above 32°F (0°C) Spotmeter: Center spot Area: Box with maximum/minimum Isotherm: Above alarm, below alarm |
| Image Presentation and Modes | Display: 3" (76.2 mm) 320 x 240 color LCD Image adjustment: Automatic adjust/lock image Image modes: Thermal MSX, thermal, picture-in-picture, thermal blending, digital camera Color palettes: Iron, Rainbow, Black and White |
| Data Communication and Interfaces | Interfaces: USB Micro: data transfer to and from PC and Mac device Wi-Fi: Peer-to-peer or infrastructure File format: Standard JPEG, 14-bit measurement data included |
| Operating Temperature | 5 to 122°F (-15 to 50°C) |
| Battery | Type: Rechargeable 3.6 V Li-ion battery Operating time: Approximately 4 hours at 77°F (25°C) ambient temperature and typical use Charging time: 2.5 hours to 90% capacity in camera; 2 hours in charger |
| Drop | 6.6' (2 m) |
| Dimensions | 9.6 x 3.7 x 5.5" (244 x 95 x 140 mm) |
| Weight | 1.27 lbs (0.575 kg) with battery |
Click on a category to view a selection of compatible accessories with the FLIR E8-XT Thermal Imaging Camera with MSX and Wi-Fi, 320 x 240, -4 to 1022°F.
| IR Resolution | 320 x 240 (76,800 pixels) |
| Thermal Sensitivity/NETD | <0.09°F (0.05°C)/<50 mK |
| Spatial Resolution (IFOV) | 2.6 mrad |
| Field of View (FOV) | 45 x 34° |
| F-number | 1.5 |
| Image Frequency | 9 Hz |
| Focus | Focus-free |
| Detector Data | Detector type: Focal Plane Array (FPA), uncooled microbolometer Spectral range: 7.5 to 13 µm |
| Measurement and Analysis | Object temperature range: -4 to 1022°F (-20 to 550°C) in two ranges Accuracy: ±3.6°F (±2°C) or ±2% of reading for ambient temperature 50 to 95°F (10 to 35°C) and object temperature above 32°F (0°C) Spotmeter: Center spot Area: Box with maximum/minimum Isotherm: Above alarm, below alarm |
| Image Presentation and Modes | Display: 3" (76.2 mm) 320 x 240 color LCD Image adjustment: Automatic adjust/lock image Image modes: Thermal MSX, thermal, picture-in-picture, thermal blending, digital camera Color palettes: Iron, Rainbow, Black and White |
| Data Communication and Interfaces | Interfaces: USB Micro: data transfer to and from PC and Mac device Wi-Fi: Peer-to-peer or infrastructure File format: Standard JPEG, 14-bit measurement data included |
| Operating Temperature | 5 to 122°F (-15 to 50°C) |
| Battery | Type: Rechargeable 3.6 V Li-ion battery Operating time: Approximately 4 hours at 77°F (25°C) ambient temperature and typical use Charging time: 2.5 hours to 90% capacity in camera; 2 hours in charger |
| Drop | 6.6' (2 m) |
| Dimensions | 9.6 x 3.7 x 5.5" (244 x 95 x 140 mm) |
| Weight | 1.27 lbs (0.575 kg) with battery |
