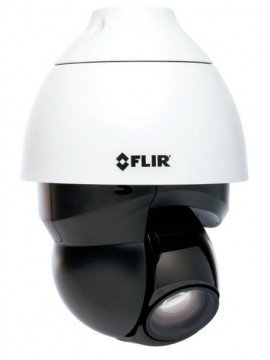

Get critical situational awareness with this camera's exceptional FOV that allows operators to monitor key details in large areas effortlessly. In addition, it has 22x optical zoom and a combination of high-performance optics and sensors, low light visible imaging, and integration with all major third-party VMS.
Get critical situational awareness with this camera's exceptional FOV that allows operators to monitor key details in large areas effortlessly. In addition, it has 22x optical zoom and a combination of high-performance optics and sensors, low light visible imaging, and integration with all major third-party VMS.
Ideal for cybersecurity, this security camera camera delivers crisp video quality with best-in-class low light capabilities and long-range IR illumination for exceptional performance.
Superior long-range surveillance
Built-in, high quality cybersecurity protection
United VMS simplifies user experience for true end-to-end solution
Applications
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Maximum Resolution | 3840 x 2160 (4K UHD) |
| Scanning Mode | Progressive |
| Optical/Digital Zoom | 22x/Up to 8x |
| Focal Lengths | 6.4 to 138.5 mm |
| Focus Mode | Auto/Manual |
| White Balance | Auto, ATW, Manual |
| Iris and AGC Control | Auto |
| Wide Dynamic Range | Shutter WDR, 130 dB |
| 3D Noise Reduction | On/Off |
| Day/Night: IR Cut Filter | Auto/Manual |
| Minimum Illumination | 0.04 lux (color)/0.02 lux (BW), 0 lux with IR on Measured with DSS off at 30 IRE |
| High Light Compensation (HLC) | Supported |
| PTZ | |
| Pan/Tilt Travel | 360° continuous/-10 to 190° |
| Manual Speed | Pan: 0.1 to 90°/second Tilt: 0.1 to 60°/second |
| Horizontal Viewing Angles | 64 (wide) to 3° (tele) |
| Presets/Preset Accuracy | 128/Pan: 0.16°; Tilt: 0.18° |
| Preset Speed | 5 to 280°/second |
| Auto Flip | Mechanical/Off |
| Proportional Pan and Tilt | On/On (pan and tilt speed proportional to zoom ratio) |
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Maximum Resolution | 3840 x 2160 (4K UHD) |
| Scanning Mode | Progressive |
| Optical/Digital Zoom | 22x/Up to 8x |
| Focal Lengths | 6.4 to 138.5 mm |
| Focus Mode | Auto/Manual |
| White Balance | Auto, ATW, Manual |
| Iris and AGC Control | Auto |
| Wide Dynamic Range | Shutter WDR, 130 dB |
| 3D Noise Reduction | On/Off |
| Day/Night: IR Cut Filter | Auto/Manual |
| Minimum Illumination | 0.04 lux (color)/0.02 lux (BW), 0 lux with IR on Measured with DSS off at 30 IRE |
| High Light Compensation (HLC) | Supported |
| PTZ | |
| Pan/Tilt Travel | 360° continuous/-10 to 190° |
| Manual Speed | Pan: 0.1 to 90°/second Tilt: 0.1 to 60°/second |
| Horizontal Viewing Angles | 64 (wide) to 3° (tele) |
| Presets/Preset Accuracy | 128/Pan: 0.16°; Tilt: 0.18° |
| Preset Speed | 5 to 280°/second |
| Auto Flip | Mechanical/Off |
| Proportional Pan and Tilt | On/On (pan and tilt speed proportional to zoom ratio) |
