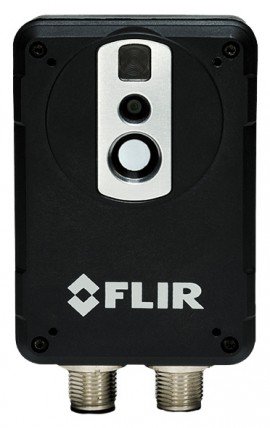

FLIR AX8 Automation Thermal Imaging Camera, 4800 Pixels (80 x 60)

Model: 71201-0101 | Order No: AX8 | UPC: 845188009373

FLIR AX8 Automation Thermal Imaging Camera, 4800 Pixels (80 x 60)

Model: 71201-0101 | Order No: AX8 | UPC: 845188009373

Combines thermal and visual cameras in a small, affordable package, the AX8 provides continuous temperature monitoring and alarming for critical electrical and mechanical equipment.

Combines thermal and visual cameras in a small, affordable package, the AX8 provides continuous temperature monitoring and alarming for critical electrical and mechanical equipment.

Power Supply and Cable are not included. They must be purchased separately.

Your Price $1340.00 CAD
Availability 6 in Stock
Quantity

The FLIR AX8 Offers

Features

Automatic Analysis and Alarms
With its streaming video output, the AX8 not only gives you live video of every installation, but it also provides automated alarming when pre-set temperature thresholds are exceeded as well as temperature trend analysis.

Industrial Protocol
Since FLIR A310 is Ethernet/IP and Modbus TCP compliant analysis and alarm results can easily be shared to a PLC. Digital inputs/outputs are available for alarms and control of external equipment. An image masking function allows you to select only the relevant part of the image for your analysis.

Compact & Easy to Install
Combining thermal and visual cameras in a small, affordable package, the AX8 measures only 54 x 25 x 95 mm, making it easy to install in space-constrained areas for uninterrupted condition monitoring of critical electrical and mechanical equipment.

Multiple Video Options
With AX8, you can view its thermal imagery, visible light imagery, or the two combined into FLIR's proprietary, patent pending MSX multispectral dynamic imaging. MSX provides image detail from the visible camera embossed on the thermal image, giving you, sharper edge detail, the ability to read labels and better contextual awareness.




COMPACT FLIR THERMAL IMAGER MAKES THE AIRPORT CHECK-IN COUNTER AREA A SAFER PLACE

Compact FLIR AX8 thermal imaging camera integrated into ENGIE Services anti-intrusion system.

It might seem like a fun thing to do at the airport first, but entering a conveyor belt system at the baggage claim is actually very dangerous. Every year again, accidents happen with children entering the baggage conveyor belt at the check-in counter area getting injured by the pushers, diverters or other moving parts of the baggage handling system.

ENGIE Services (formerly known as Cofely Services), a global specialist in operating and maintaining airport facilities, has developed an innovative anti-intrusion system, based on thermal imaging cameras from FLIR and smart pattern recognition.

FLIR AX8 is a thermal sensor with imaging capabilities. Combining thermal and visual cameras in a small, affordable package, the AX8 provides continuous temperature monitoring and alarming for of critical electrical and mechanical equipment.

The AX8 helps you guard against unplanned outages, service interruptions, and equipment failure. You'll get the benefits of continuous condition monitoring and hot spot detection without the need for periodic manual scans.

Compact and easy to install, AX8 provides continuous monitoring of electrical cabinets, process and manufacturing areas, data centers, energy generation and distribution, transportation and mass transit, storage facilities and refrigeration warehouses.

Application Note: Detecting elevated body temperatures is often our first line of defense

The purpose of this screening is to differentiate people who are well from those who have a fever. We'll walk you through the correct use of the instruments and how to value the results they provide you with.

Read our note on how to detect body temperatures

FLIR AX8 Specifications

Imaging & Optical Data
IR Resolution80 × 60 pixels
Thermal Sensitivity/NETD < 0.10°C @ +30°C (+86°F) / 100 mK
Field of View (FOV) 48° × 37°
FocusFixed
Detector Data
Detector TypeFocal Plane Array (FPA), uncooled microbolometer
Spectral Range7.5–13 µm
Visual Camera
Built-in Digital Camera640 × 480
Digital Camera, FOVAdapts to the IR lens
SensitivityMinimum 10 Lux without illuminator
Measurement
Object Temperature Range –10 to 150°C (14 to 302°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading (10 to 100°C @ 10 to 35 amb)
Measurement Analysis
Spotmeter6
Area6 boxes with max./min./average
Automatic Hot/Cold DetectionMax/Min temp. value and position shown within box
Measurement PresetsYes
Atmospheric Transmission CorrectionAutomatic, based on inputs for distance, atmospheric temperature and relative humidity
Optics Transmission CorrectionAutomatic, based on signals from internal sensors
Emissivity CorrectionVariable from 0.01 to 1.0
Reflected Apparent Temperature CorrectionAutomatic, based on input of reflected temperature
External Optics/Windows CorrectionAutomatic, based on input of optics/window transmission and temperature
Measurement CorrectionsGlobal object parameters
Alarm
Alarm FunctionsAutomatic alarms on any selected measurement function. A maximum of 5 alarms can be set
Alarm Output Digital Out, store image, file sending (ftp), email (SMTP), notification
Set-up
Color PalettesColor palettes (BW, BW inv, Iron, Rain)
Set-up CommandsDate/time, Temperature °C/°F
Web InterfaceYes
Storage of Images
Storage MediaBuilt-in memory for image storage
Image Storage ModeIR, visual, MSX
File FormatsJPEG + FFF
Ethernet
EthernetControl, result and image
Type100 Mbps
StandardIEEE 802.3
Connector typeM12 8-pin X-coded
Video StreamingYes
PowerPower over Ethernet, PoE IEEE 802.3af class 0.
Ethernet, protocolsEthernet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, sftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour)
Image Streaming
Image Streaming FormatsMotion JPEG, MPEG, H.264
Image Streaming Resolution 640 × 480
Image ModesThermal, Visual, MSX (IR-image with enhanced detail presentation)
Automatic Image AdjustmentContinuous
Power System
External Power Operation12/24VDC, 2 W continuously/ 3.1 W absolute max
External Power, ConnectorM12 8-pin A-coded (Shared with digital I/O)
Voltage Allowed Range10.8–30VDC
Environmental Data
Operating Temperature0 to 50°C (32 to 122°F)
Storage Temperature-40 to 70°C (-40 to 158°F) IEC 68-2-1 and IEC 68-2-2
Humidity (Operating and Storage) IEC 60068-2-30/24 h 95% relative humidity 25 to 40°C (77 to 104°F)/ 2 cycles
EMCEN 61000-6-2:2001 (Immunity) EN 61000-6-3:2001 (Emission) FCC 47 CFR Part 15 Class B (Emission)
EncapsulationIP67 (IEC 60529)
Bump25 g (IEC 60068-2-29)
Vibration2 g (IEC 60068-2-6)
Physical Data
Camera Size (L × W × H) 54 × 25 × 79 mm (2.1 x 1 x 3.1 in.) w/o connectors
54 × 25 × 95 mm (2.1 x 1 x 3.7 in.) w/ connectors
Shipping Information
Click here for complete specifications on the FLIR 71201-0101

What's included with the FLIR AX8

  • Infrared camera with lens
  • Printed documentation
  • User documentation CD-ROM

Power Supply and Cable are not included. They must be purchased separately.

FLIR AX8: Features Walkthrough

Thermal Imaging For Continuous Condition & Safety Monitoring: FLIR AX8

Click on a category to view a selection of compatible accessories with the FLIR AX8 Automation Thermal Imaging Camera, 4800 Pixels (80 x 60).

FLIR T130086 Intelligent I/O Module for 1 AX8 Thermal Imaging Camera, 4 to 20 mA Out, 2 Channels T130086
This intelligent I/O module supports 1 AX8 camera, letting you configure alarms via a built-in web server. The module comes with Ethernet connectivity, 2 channel digital outputs (24 VDC) and 2 channel outputs (4 to 20 mA).




FLIR T130087 Intelligent I/O Module for 7 AX8 Thermal Imaging Cameras, 4 to 20mA Out, 8 Channels T130087
This intelligent I/O module supports 7 AX8 cameras, letting you configure alarms via a built-in web server. The module comes with Ethernet connectivity, 8 channel digital outputs (24 VDC) and 8 channel outputs (4 to 20 mA).




FLIR 71200-0002 AX8 Accessory Starter Kit 71200-0002
Get your AX8 up and running with this starter kit. The kit includes T128390ACC Ethernet cable, M12 to RJ45, T199163 Front mounting plate kit, T128775ACC Rear mounting plate kit, T199019 PoE injector and Cable kit, T128391ACC Cable & M12 to pigtail.




FLIR T199507 PoE injector and Cable Kit Mains for the FLIR AX8 T199507
Power over Ethernet injector for the FLIR AX8. Includes cables.




FLIR T128390 Ethernet Cable, M12 to RJ45 T128390
M12 to RJ45 cable for the FLIR AX8 Fixed Thermal Imaging Camera.




FLIR T128391 DC Power to Digital I/O Cable, M12 to Pigtail T128391
For use with the FLIR AX8 Fixed Thermal Imaging Camera.




FLIR T128775 Rear Mounting Plate Kit for the FLIR AX8 T128775
Rear mounting plate kit for mounting a FLIR AX8 camera.




FLIR T199163 Front Mounting Plate Kit for the FLIR AX8 T199163
Front mounting plate kit for mounting a FLIR AX8 camera. Includes cooling bracket.




FLIR T198821 Aluminum cooling bracket for FLIR AX8 T198821
Aluminum Heat Sink and Mounting Bracket with Tripod Mount for the FLIR AX8.




Customer Reviews for the FLIR 71201-0101
