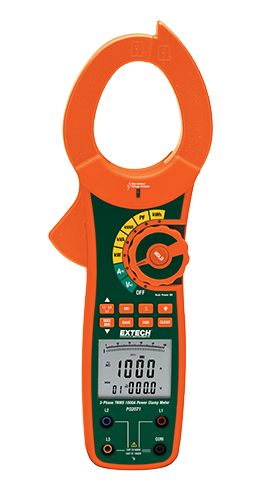

Extech PQ2071 True RMS AC Power Clamp Meter, 1000 A

Model: PQ2071 | UPC: 793950220719

Extech PQ2071 True RMS AC Power Clamp Meter, 1000 A-

Downloads: datasheet manual

More Extech Products

Ask an Expert

Extech PQ2071 True RMS AC Power Clamp Meter, 1000 A

Model: PQ2071 | UPC: 793950220719

Multifunctional clamp meter operates as a True RMS clamp meter, power meter, multimeter, and non-contact AC voltage detector. Features a CAT IV-600 V safety rating and measures AC, voltage, frequency, and power including, true, apparent, reactive, and active power.

Multifunctional clamp meter operates as a True RMS clamp meter, power meter, multimeter, and non-contact AC voltage detector. Features a CAT IV-600 V safety rating and measures AC, voltage, frequency, and power including, true, apparent, reactive, and active power.

Your Price $419.00 CAD
Availability 3 to 4 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your PQ2071 True RMS AC Power Clamp Meter

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your PQ2071 True RMS AC Power Clamp Meter

Recommended Accessories

Extech PQ1000 Voltage Test Leads, Set of 4-

Extech PQ1000 Voltage Test Leads, Set of 4

PQ1000

Extech 480172 AC Line Splitter-

Extech 480172 AC Line Splitter

480172

Extech PQ2071 Offers

Features

  • Measures one-phase and balanced three-phase true power (kW), apparent power (kVA), reactive power (kVAR), and active power (kWh), plus power factor and phase angle
  • 2.16" (55mm) clamp jaw opening
  • Large dual backlit LCD display (9999 count) with bar graph
  • Built-in non-contact voltage detector with LED alert
  • Frequency measurement to 200 Hz
  • Manually store/recall up to 99 data sets
  • Data hold, max/min, and auto power off
  • USB interface for connection to a PC for data logging function with included software

Applications

  • AC power quality evaluation
  • Motor/generator installation and repair
  • Energy audits

Extech PQ2071 Specifications

True Power (W) Range: 750 kW
Maximum resolution: 10 W
Basic resolution (%rdg): ±3%
Apparent Power (kVA) Range: 750 kVA
Maximum resolution: 10 kVA
Basic resolution (%rdg): ±3%
Reactive Power (kVAR) Range: 750 kVAR
Maximum resolution: 10 VAR
Basic resolution (%rdg): ±4%
Active Power (kWh) Range: 9999 kWh
Maximum resolution: 0.001
Basic resolution (%rdg): ±3%
Power Factor Range: 0.3 to 1
Maximum resolution: 0.001
Basic resolution (%rdg): ±0.02
Phase Angle (φ) Range: -180 to 180°
Maximum resolution: 1°
Basic resolution (%rdg): ±2°
AC Current (Trms) Range: 1000 A
Maximum resolution: 100 mA
Basic resolution (%rdg): ±2%
AC Voltage (Trms) Range: 750 V
Maximum resolution: 0.1 V
Basic resolution (%rdg): ±1.2%
Frequency Range: 50 to 200 Hz
Maximum resolution: 1 Hz
Dimensions 11.5 x 3.75 x 1.5" (292 x 95 x 38 mm)
Weight 18.4 oz (522 g)
Click here for complete specifications on the Extech PQ2071

What's included with the Extech PQ2071

  • Clamp Meter
  • Test Leads
  • 4 x Color-Coded Leads and Alligator Clips
  • USB Cable
  • Soft Carrying Case
  • 9 V Battery
  • PC Software
datasheet for the Extech PQ2071 True RMS AC Power Clamp Meter, 1000 A manual for the Extech PQ2071 True RMS AC Power Clamp Meter, 1000 A

Click on a category to view a selection of compatible accessories with the Extech PQ2071 True RMS AC Power Clamp Meter, 1000 A.

Extech PQ1000 Voltage Test Leads, Set of 4 PQ1000
The PQ1000 is a CAT IV Test Lead Accessory Kit for the PQ3400 power analyzer series. Includes a set of 4, 10ft test leads with shrouded banana plugs on both ends, test probes, alligator clips, and long reach spring loaded clips.



Extech 480172 AC Line Splitter 480172
Allows clamp meter to measure AC Current on a 2-wire or 3-wire power cord.
