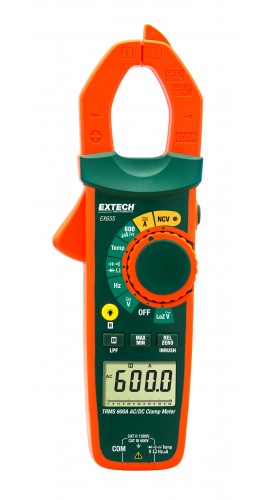

Extech EX655 True RMS AC/DC Clamp Meter with Temperature & NCV, 600A

Model: EX655 | UPC: 793950396551

Extech EX655 True RMS AC/DC Clamp Meter with Temperature & NCV, 600A-

Downloads: datasheet manual

More Extech Products

Ask an Expert

Extech EX655 True RMS AC/DC Clamp Meter with Temperature & NCV, 600A

Model: EX655 | UPC: 793950396551

AC/DC clamp meter with temperature function, non-contact voltage detector, low impedance, low pass filter. Featuring True RMS that provides accurate readings when measuring distorted or noisy waveforms, as well as a 6000 count backlit LCD display.

AC/DC clamp meter with temperature function, non-contact voltage detector, low impedance, low pass filter. Featuring True RMS that provides accurate readings when measuring distorted or noisy waveforms, as well as a 6000 count backlit LCD display.

Your Price $204.00 CAD
Availability 2 in Stock
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your EX655 True RMS AC/DC Clamp Meter with Temperature & NCV

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your EX655 True RMS AC/DC Clamp Meter with Temperature & NCV

Extech EX655 Offers

Features

  • Functions include AC/DC current, AC/DC voltage, AC/DC micro current, resistance, capacitance, diode test, continuity and frequency
  • Built-in Type K thermometer for contact surface temperature measurements
  • Built-in non-contact AC voltage detector with LED alert
  • Built-in LED flashlight for working in dimly-lit areas
  • True RMS for accurate AC measurements when measuring distorted or noisy waveforms
    • Low Impedance (LoZ) prevents false reading caused by ghost voltages
  • Low pass filter (LPF) attenuates high frequencies to reduce noise for accurate readings
  • Inrush mode to capture current surges during motor startup
  • DC μA multimeter function for HVAC/R flame rod current measurements
  • 6000 count backlit LCD display with LCD trending bargraph
  • Data Hold freezes the reading on the display
  • Min/Max captures highest and lowest readings
  • Relative function
  • DC zero function
  • 1.18" (30mm) jaw size accommodates conductors up to 350MCM
  • Auto Power Off conserves battery life
  • CAT III 600V safety rating

Extech EX655 Specifications

AC/DC Current Range 60A, 600A
AC/DC µA Current Range 600µA
AC Voltage Range 750V
DC Voltage Range 1000V
Non-contact AC Voltage Range 100 to 1000V
Resistance Range 60MΩ
Capacitance Range 60mF
Frequency Range 10Hz to 1MHz
Type K Temperature Range -40 to 1832°F (-40 to 1000°C)
Dimensions 9 x 3 x 1.6" (229 x 77 x 41mm)
Weight 9.4 oz (265g)
Click here for complete specifications on the Extech EX655

What's included with the Extech EX655

  • AC Clamp Meter/Non-contact Voltage Detector
  • Test Leads
  • Type K Bead Wire Temperature Probe
  • 3 x AAA Batteries
datasheet for the Extech EX655 True RMS AC/DC Clamp Meter with Temperature & NCV, 600A manual for the Extech EX655 True RMS AC/DC Clamp Meter with Temperature & NCV, 600A
