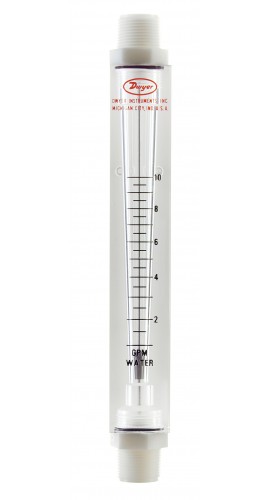

Image is for reference only, refer to product info for complete details.
Contains a stainless steel guide rod and large diameter float for excellent stability and visibility in high flow rates. The large 5" scale provides a ±2% full scale accuracy for precision measurement required in medical or laboratory applications. Equipped with acetal thermoplastic 1" male NPT fittings. Fittings also include hex wrench flats to prevent stripped threads.
Contains a stainless steel guide rod and large diameter float for excellent stability and visibility in high flow rates. The large 5" scale provides a ±2% full scale accuracy for precision measurement required in medical or laboratory applications. Equipped with acetal thermoplastic 1" male NPT fittings. Fittings also include hex wrench flats to prevent stripped threads.
Service: Compatible gases and liquids.
Wetted Materials: Body: acrylic plastic; O-ring: Buna-N (fluoroelastomer available); Metal Parts: stainless steel; Float: stainless steel.
Temperature & Pressure Limits: 100 psig (6.9 bar) @ 120°F (48°C)
Accuracy: 2% of full scale.
Process Connection: VFC: 1" female NPT back connections. End connections optional. VFCII: 1" male NPT back connections. End connections optional.
Scale Length: 5" typical length.
Mounting Orientation: Mount in vertical position.
Weight: 24-25 oz (.68-.71 kg).
