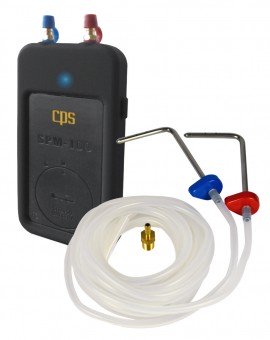

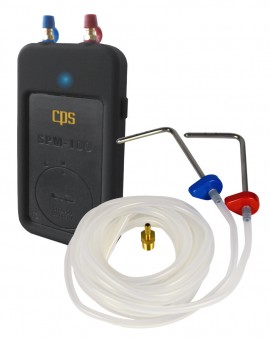

CPS SPM-K1 Static Pressure Meter and Probe Kit

Downloads: datasheet

Combines the SPM-100 and the PRB-KIT and includes a brass gas fitting.

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG2) for only $225.00 CAD

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG2) for only $225.00 CAD

The SPM-K1 combines the convenience of our innovative probe kit with the power of the SPM-100 Static Pressure Meter.

Features

Free app that connects the meter to your smartphone
Onscreen guidance that makes it easy to take accurate readings
Ruggedized housing with magnetic back for handsfree operation
Emails professional detailed reports from within the app to enhance professionalism and validate work performed
Measures:
- Static Pressure
- Pressure Differential
- Total External Static Pressure
- Indoor vs. Outdoor Conditions
- Weather Data
- Stores and Sends Reports

Operational temperature range	-40 to +185°F (-40 to +85°C)
Operational temperature range full accuracy	-32 to +149°F (0 to +65°C)
Power	Panasonic 3.6V, CR 2450 Coin Cell Lithium Battery
Battery Life	>500 hours
Units of Measure	inWC, inHg, psi, mmWC, mmHg, Pa, kPa, mBar
Resolution	0.004 inWC
Pressure range	±75 inWC
Absolute Accuracy	0 to 65°C (32 to149°F): typical .04 inWC
Weight	0.1 lbs
Dimensions	2.5" x 5.2" x 0.76"
