BinMaster 3DLS-MVL Multiple Scanner System, 200', analog

Model: 3DLS-MVL | Order No: 730-0626

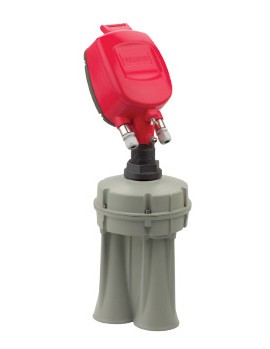

BinMaster 3DLS-MVL Multiple Scanner System, 200', analog-

Downloads: datasheet

More BinMaster Products

Ask an Expert

BinMaster 3DLS-MVL Multiple Scanner System, 200', analog

Model: 3DLS-MVL | Order No: 730-0626

Built with a design using dust-penetrating technology, this multi-scanner system provides an analog output that represents (as a default value) the overall volume of the contents of the entire silo. Separately purchased controller unifies the visualization by integrating data from multiple scanners.

Built with a design using dust-penetrating technology, this multi-scanner system provides an analog output that represents (as a default value) the overall volume of the contents of the entire silo. Separately purchased controller unifies the visualization by integrating data from multiple scanners.

Your Price $13261.00 CAD
Availability 2 to 3 Weeks
Quantity

Recommended Accessories

BinMaster 3D MultiVision Software, Windows based-

BinMaster 3D MultiVision Software, Windows based

3DVS

BinMaster 3DLS-MVL Offers

Features

  • Continuous and non-contact measurement
  • Measures uneven powder or solid material surfaces
  • Detects cone up, cone down, and sidewall buildup
  • Provides minimum, maximum, and average distances
  • Performs in extreme levels of dust
  • Calculates highly accurate bin volume
  • Communications include 4-20/HART, Modbus RTU, TCP/IP and RS-485
  • Measuring range up to 200 feet
  • Self-cleaning with minimal maintenance

Applications

  • Suitable for pellets, granulars, powders, and most other bulk solids
  • Bin, tanks and silos where the material surface has uneven topography
  • Grain, seed, feed, and food processing
  • Ethanol, bioenergy and power plants
  • Aggregates and cement
  • Mining and metals
  • Chemical processing and plastics manufacturing
  • Pulp, paper, and wood pellets

BinMaster 3DLS-MVL Specifications

Measuring Range 200' (61 meters)
Process Temperatures -40 to 185°F (-40 to 85°C) Standard
Process Pressure -2.9 to 14.5 psi (-0.2 to 3 bar)
Signal Output 4-wire 4 to 20 mA / HART / RS-485 / Modbus
Emitting Frequency 3 to 10 KHz
Supply Voltage 20 to 32 VDC
Power Consumption Maximum 1.5 W @ 24 VDC
Preferred Applications Powders and solids
Hazardous Locations CFM Intrinsically Safe Class I, II, Division I, Groups C, D, E, F, G (US & Canada)
Click here for complete specifications on the BinMaster 3DLS-MVL

What's included with the BinMaster 3DLS-MVL

  • 3D Level Scanner
  • Internal LCD Display
  • 3DVision Software
  • One Year Warranty
datasheet for the BinMaster 3DLS-MVL Multiple Scanner System, 200', analog

Click on a category to view a selection of compatible accessories with the BinMaster 3DLS-MVL Multiple Scanner System, 200', analog.

BinMaster 3D MultiVision Software, Windows based 3DVS
Provides measurement data to a Windows-based computer, this software works in conjunction with all models of the 3DLevelScanner and is used to view the inventory in multiple silos and locations.



Ask a question about BinMaster 3DLS-MVL Multiple Scanner System, 200', analog

Customer Reviews for the BinMaster 3DLS-MVL

BinMaster 3DLS-MVL Offers

Features

  • Continuous and non-contact measurement
  • Measures uneven powder or solid material surfaces
  • Detects cone up, cone down, and sidewall buildup
  • Provides minimum, maximum, and average distances
  • Performs in extreme levels of dust
  • Calculates highly accurate bin volume
  • Communications include 4-20/HART, Modbus RTU, TCP/IP and RS-485
  • Measuring range up to 200 feet
  • Self-cleaning with minimal maintenance

Applications

  • Suitable for pellets, granulars, powders, and most other bulk solids
  • Bin, tanks and silos where the material surface has uneven topography
  • Grain, seed, feed, and food processing
  • Ethanol, bioenergy and power plants
  • Aggregates and cement
  • Mining and metals
  • Chemical processing and plastics manufacturing
  • Pulp, paper, and wood pellets
Show More...

BinMaster 3DLS-MVL Specifications

Measuring Range 200' (61 meters)
Process Temperatures -40 to 185°F (-40 to 85°C) Standard
Process Pressure -2.9 to 14.5 psi (-0.2 to 3 bar)
Signal Output 4-wire 4 to 20 mA / HART / RS-485 / Modbus
Emitting Frequency 3 to 10 KHz
Supply Voltage 20 to 32 VDC
Power Consumption Maximum 1.5 W @ 24 VDC
Preferred Applications Powders and solids
Hazardous Locations CFM Intrinsically Safe Class I, II, Division I, Groups C, D, E, F, G (US & Canada)
Click here for complete specifications on the BinMaster 3DLS-MVL

What's included with the BinMaster 3DLS-MVL

  • 3D Level Scanner
  • Internal LCD Display
  • 3DVision Software
  • One Year Warranty
datasheet for the BinMaster 3DLS-MVL Multiple Scanner System, 200', analog

Click on a category to view a selection of compatible accessories with the BinMaster 3DLS-MVL Multiple Scanner System, 200', analog.

BinMaster 3D MultiVision Software, Windows based 3DVS
Provides measurement data to a Windows-based computer, this software works in conjunction with all models of the 3DLevelScanner and is used to view the inventory in multiple silos and locations.



Ask a question about BinMaster 3DLS-MVL Multiple Scanner System, 200', analog

Customer Reviews for the BinMaster 3DLS-MVL
