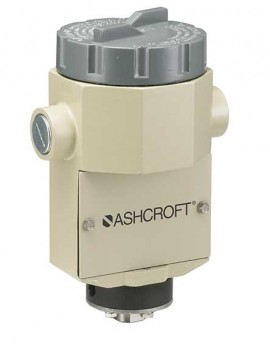

Ideal for use with blowers, compressors, boilers, burners, turbines and reverse osmosis systems, this multifunction pressure switch features an explosion-proof NEMA 7 enclosure. It comes with a single set point, adjustable deadband and pressure range of 600 psi.
Ideal for use with blowers, compressors, boilers, burners, turbines and reverse osmosis systems, this multifunction pressure switch features an explosion-proof NEMA 7 enclosure. It comes with a single set point, adjustable deadband and pressure range of 600 psi.
The PP series pressure switch was designed for use with harsh applications where uncompromising protection is required. The features of this switch along with its proven technology provide a stable, long-lasting product; ideal for satisfying pressure control, shutdown or alarm operations.
Features
Applications
| Setpoint | Factory set or field adjustable |
| Setpoint Repeatability | ±1% of full range (Additional setpoint shift of ±1% of range per 50°F from initial setpoint set at 70°F typical) |
| Enclosure Rating | NEMA 4X, IP66 |
| Enclosure Material | Epoxy coated aluminum |
| Diaphragm Material | Buna N |
| Pressure Connection | 1/4 NPT Female |
| Electrical Output | SPDT |
| Electrical Termination | 3/4 NPT Female |
| Ambient Temperature Range | -20 to 150°F (-28 to 65°C) |
| Process Temperature | 0 to 150°F (-17.8 to 65.6°C) |
| Pressure Range | 600psi |
| Setpoint | Factory set or field adjustable |
| Setpoint Repeatability | ±1% of full range (Additional setpoint shift of ±1% of range per 50°F from initial setpoint set at 70°F typical) |
| Enclosure Rating | NEMA 4X, IP66 |
| Enclosure Material | Epoxy coated aluminum |
| Diaphragm Material | Buna N |
| Pressure Connection | 1/4 NPT Female |
| Electrical Output | SPDT |
| Electrical Termination | 3/4 NPT Female |
| Ambient Temperature Range | -20 to 150°F (-28 to 65°C) |
| Process Temperature | 0 to 150°F (-17.8 to 65.6°C) |
| Pressure Range | 600psi |
