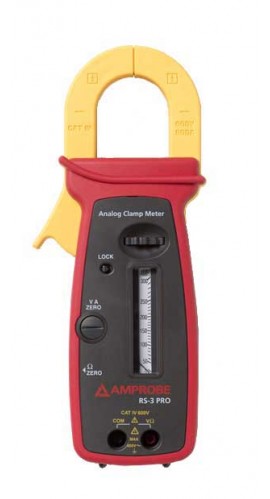

This analog clamp meter can be used even in extreme temperatures. Features easy to use rotary scale that measures volts and amps with no batteries required.
This analog clamp meter can be used even in extreme temperatures. Features easy to use rotary scale that measures volts and amps with no batteries required.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
This CAT IV 600V safety rated analog clamp is a great tool for tough electrical applications. Works well in extreme temperatures from 32 to 122°F (0 to 50°C), while digital clamp LCD screens tend to freeze this anolog clamp measures up to the test. This clamp meter does not require batteries for measuring Amps and Volts and shows measurement with an easy-to-read rotary scale.
Features
| AC Voltage | 150, 300, 600 V |
| AC Current | 6, 15, 40, 100, 300 A |
| Continuity | Yes |
| Accommodates Conductors | up to 1.64" (41 mm) in diameter |
| Safety LVD | Category IV – 600 Volts ac Meets EN60101-1:2001; EN61010-2-032:2002; pollution degree : II; class 2 |
| Display | Analog scales with clamping needle |
| Jaw Opening/Conductor Diameter | 1.64" (41 mm) max |
| Power Supply Volt/Amp | Powered by circuit under test 1.5 V AAA battery (ANSI/NEDA-24A, IEC LR03) |
| Environmental | Indoor operation; below 2000m (6,562ft) |
| AC Voltage (50/60 Hz) | 150 / 300 / 600 Vrms |
| Accuracy | ±3% of full scale |
| Input impedance | 1.5 MO |
| AC Amp (50/60 Hz) range | 6 / 15 / 40 / 100 /600 Arms |
| Ohms range | 1000 Ω; 25 Ω mid-scale |
| Dimensions | 10.3 x 4 x 1.6" (243 x 102 x 41 mm) |
| Weight | 1 lb (0.455 kg) |
| AC Voltage | 150, 300, 600 V |
| AC Current | 6, 15, 40, 100, 300 A |
| Continuity | Yes |
| Accommodates Conductors | up to 1.64" (41 mm) in diameter |
| Safety LVD | Category IV – 600 Volts ac Meets EN60101-1:2001; EN61010-2-032:2002; pollution degree : II; class 2 |
| Display | Analog scales with clamping needle |
| Jaw Opening/Conductor Diameter | 1.64" (41 mm) max |
| Power Supply Volt/Amp | Powered by circuit under test 1.5 V AAA battery (ANSI/NEDA-24A, IEC LR03) |
| Environmental | Indoor operation; below 2000m (6,562ft) |
| AC Voltage (50/60 Hz) | 150 / 300 / 600 Vrms |
| Accuracy | ±3% of full scale |
| Input impedance | 1.5 MO |
| AC Amp (50/60 Hz) range | 6 / 15 / 40 / 100 /600 Arms |
| Ohms range | 1000 Ω; 25 Ω mid-scale |
| Dimensions | 10.3 x 4 x 1.6" (243 x 102 x 41 mm) |
| Weight | 1 lb (0.455 kg) |
