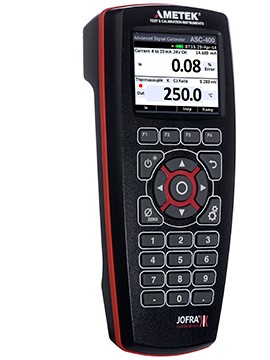

AMETEK Jofra ASC-400 Series Advanced Signal Calibrator

Compact and portable, this multifunction process calibrator features a large, full-color display with a simplified user interface. With state-of-the-art circuitry and fuseless protection, this signal calibrator offers high accuracy in percentage error calculation, scaling, leak-testing, and switch calibrating.

Configure This Product:

Baro Module Option

Calibration Certificate

Optional Accessories

Optional Accessories 2

Ordering Number
Compact and portable, this multifunction process calibrator features a large, full-color display with a simplified user interface. With state-of-the-art circuitry and fuseless protection, this signal calibrator offers high accuracy in percentage error calculation, scaling, leak-testing, and switch calibrating.
Your Price	$
Sale Price	$
Availability
Quantity

Recommended Accessories

AMETEK Jofra 128848 Soft Carrying Case for the ASC400

128848

Jofra ASC-400 Offers

Offering the functionality and accuracy you expect from a laboratory calibration system, this portable multifunction process calibrator offers a one-handed operation and easy field calibration.

Features

Large full-color display
Advanced simplicity user interface
Connection assistant provides connection details for the current set-up
Simultaneous read-back and fast RTD simulation
Connect an RTD to use as a high accuracy thermometer using "True Ohm" technology
Full numerical keypad with cursor and function keys
Recall saved tasks for both upper and lower windows
Fuseless protection
Inputs for thermocouple calibration
Read and source RTD, thermocouple, current, voltage, frequency, resistance, and pulse train output

Jofra ASC-400 Specifications

Ambient Temperature
Temperature	Operating: 14 to 122°F (-10 to 50°C) Storage: -4 to 140°F (-20 to 60°C)
Humidity	0 to 80% RH, non-condensing
Case Protection	IP40
All Specs Specified at Ambient Temperature	73°F ±9°F (23°C ±5°C)
Temperature Range at Ambient 73°F (23°C), ±9°F (5°C)	±0.0017% rdg/°F (±0.003% rdg/°C)
General Specifications
Switch Test Output	Maximum current: 1 mA Maximum voltage: 24 VDC
Power	Batteries: 6 x AA batteries Low battery warning: Yes Lifetime: 30 hours (backlight low no, loop power), 13 hours (backlight high, 12 mA loop)
Display	Size: 2.8" (7.1 cm) Resolution: 320 x 240 pixels Type: TFT/Color Update rate: 2.5 readings/sec.
Dimensions	8.6 x 2.17 x 3.78" (220 x 55 x 96 mm)
Weight	32.91 oz (584 g)

Click here for complete specifications on the Jofra ASC-400

What's included with the Jofra ASC-400

Advanced Signal Calibrator
Full International Traceable Calibration Certificate
2 x Test Lead and Test Clip Sets (Black and Red)
Soft Carrying Case
6 x AA Batteries
Electronic Manual (USB)

datasheet for the AMETEK Jofra ASC-400 Series Advanced Signal Calibrator manual for the AMETEK Jofra ASC-400 Series Advanced Signal Calibrator

Click on a category to view a selection of compatible accessories with the AMETEK Jofra ASC-400 Series Advanced Signal Calibrator.

Carrying Case

AMETEK Jofra 128848 Soft Carrying Case for the ASC400 128848

Ensuring safe transport and storage, this carrying case is designed specifically for the ASC-400 series Advanced Signal Calibrator.
