This Current Probe is designed for use in utility and industrial environments. The unique ergonomic design allows it to easily clamp onto cables or small bus bars. It is assembled to the highest safety and performance standards including the CE Mark and is UL approved for Canada and United States.
This Current Probe is designed for use in utility and industrial environments. The unique ergonomic design allows it to easily clamp onto cables or small bus bars. It is assembled to the highest safety and performance standards including the CE Mark and is UL approved for Canada and United States.

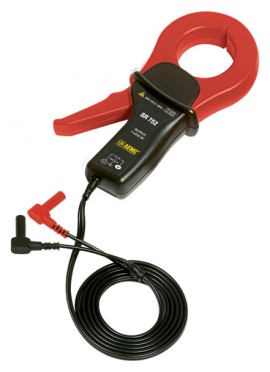

This general purpose 1000AAC current probe is designed for use with DMMs, loggers and other instruments that have voltage inputs. It has a voltage output proportional at the rate of 1mV per amp to the current measured in the jaw of the probe. The SR752 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs.
Features
Applications
| Nominal Range | 1000A |
| Measurement Range | 100mA to 1200A |
| Transformation Ratio | Voltage output |
| Output Signal | 1mV AC/A AC (1V AC at 1000A) |
| Accuracy (1000A Range) | 0.1 to 1A: ≤2% of Reading ± 3µV 1 to 10A: <1% of Reading 10 to 100A: ≤0.5% of Reading 100 to 1200A: ≤0.3% of Reading |
| Phase Shift (1000A Range) | 1 to 10A: ≤2° 10 to 100A: ≤1° 100 to 1200A: ≤0.7° |
| Overload | 1200A for 40 min ON, 20 min OFF |
| Frequency Range | 30Hz to 5kHz Current derating above 1kHz using the formula: 1000A x 1F (in kHz) |
| Load Impedance | 100kΩ min |
| Working/Common Mode Voltage | 600Vrms Cat. III |
| Output Termination | 5ft Lead |
| Nominal Range | 1000A |
| Measurement Range | 100mA to 1200A |
| Transformation Ratio | Voltage output |
| Output Signal | 1mV AC/A AC (1V AC at 1000A) |
| Accuracy (1000A Range) | 0.1 to 1A: ≤2% of Reading ± 3µV 1 to 10A: <1% of Reading 10 to 100A: ≤0.5% of Reading 100 to 1200A: ≤0.3% of Reading |
| Phase Shift (1000A Range) | 1 to 10A: ≤2° 10 to 100A: ≤1° 100 to 1200A: ≤0.7° |
| Overload | 1200A for 40 min ON, 20 min OFF |
| Frequency Range | 30Hz to 5kHz Current derating above 1kHz using the formula: 1000A x 1F (in kHz) |
| Load Impedance | 100kΩ min |
| Working/Common Mode Voltage | 600Vrms Cat. III |
| Output Termination | 5ft Lead |
