True RMS, 400A AC/DC, 600V AC/DC, Hz, Ohms, Continuity, Temperature.
True RMS, 400A AC/DC, 600V AC/DC, Hz, Ohms, Continuity, Temperature.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

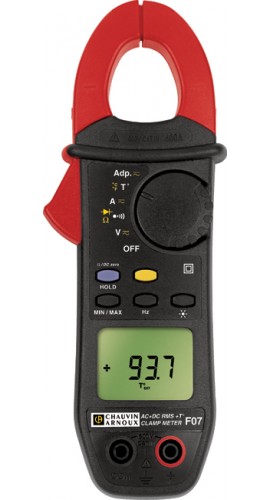

The AEMC F07 is a high performance clamp-on meter built into a rugged compact sized case, with exceptional ergonomic design and extraordinary measurement possibilities.
Integrating a fast microprocessor sampling at a high rate, the Model F07 is completely automatic and performs TRMS measurements on the most distorted waveforms. The Model F07 measures TRMS Voltage and Current and can incorporate the DC component of the signal for the Truest RMS. It has a V-Live function to warn of the use of live circuits or elevated voltages.Temperature measurements up to 1832°F (1000°C) can be taken via standard K thermocouple. The Model F07 can measure in-rush currents from 1 cycle up to 10 cycles and frequency. Other features include: auto-ranging, 4000-count display and Auto-Off.
| Electrical | |
| Measurement Range | 40V: 0.2 to 39.99V / 400V: 40.0 to 399.9V / 4000V: 400 to 600V (400 to 900V pk) |
| Accuracy | 40V: 1% of reading + 5cts / 400V: 1% of reading + 2cts / 4000V: 1% of reading + 2cts |
| Continuity | |
| Measurement Range | 0.0 to 399.9Ω; |
| Accuracy | 1% of reading + 2cts |
| Resistance | |
| Measurement Range | 400Ω: 0.0 to 399.9Ω / 4000Ω: 400 to 3999Ω / 40000Ω: 4.0 to 39.99kΩ; |
| Accuracy | 1% of reading + 2cts |
| Diode | |
| Measurement Range | 4V: 0 to 3.199V |
| Current | |
| Measurement Range | 40A: 0.20 to 39.99A / 400A: 40 to 399.9A / 4000A: 400 to 600A pk |
| Accuracy | 40A: 1.5% of reading + 10cts / 400A: 1.5% of reading + 2cts / 4000A: 1.5% of reading + 2cts |
| Resolution | 40A: 10mA / 400A: 100mA / 4000A: 1A |
| Inrush Function | |
| Range for use | ≥5A pk for the first period of the signal |
| Accuracy | 5% + 0.5A |
| Capture Time | 0.5 to 10 periods of the signal frequency (8 to 160ms at 60Hz) |
| Frequency | |
| Measurement Range | 40Hz: 10.00 to 39.99Hz / 400Hz: 40.0 to 399.9Hz / 4000Hz: 400 to 3999Hz / 40000Hz: 4.00 to 19.99kHz |
| Accuracy | 40Hz - 40kHz: 0.4% of reading + 1ct |
| General | |
| Display | 4 digits, 9999 counts, 3 decimal points, "+" & "-" signs (DC and peak measurement) |
| Operating Temperature | 32° to 122°F (0° to 50°C); 90% RH |
| Storage Temperature | 40° to 158°F (-40° to 70°C); 90% RH |
| Power Source | 9V Alkaline Battery (type IEC 6LF22, 6LR61, or NEDA 1604) |
| Jaw Opening | ≤1.00" (≤26mm) |
| Dimensions | 2.76 x 7.6 x 1.46" (70 x 193 x 37mm) |
| Weight | 9.17 oz (260g) |
| Safety | |
| Safety Rating | EN62020-1, EN61010-2-032, 600V CAT III |
| CE Mark | Yes |
| Electrical | |
| Measurement Range | 40V: 0.2 to 39.99V / 400V: 40.0 to 399.9V / 4000V: 400 to 600V (400 to 900V pk) |
| Accuracy | 40V: 1% of reading + 5cts / 400V: 1% of reading + 2cts / 4000V: 1% of reading + 2cts |
| Continuity | |
| Measurement Range | 0.0 to 399.9Ω; |
| Accuracy | 1% of reading + 2cts |
| Resistance | |
| Measurement Range | 400Ω: 0.0 to 399.9Ω / 4000Ω: 400 to 3999Ω / 40000Ω: 4.0 to 39.99kΩ; |
| Accuracy | 1% of reading + 2cts |
| Diode | |
| Measurement Range | 4V: 0 to 3.199V |
| Current | |
| Measurement Range | 40A: 0.20 to 39.99A / 400A: 40 to 399.9A / 4000A: 400 to 600A pk |
| Accuracy | 40A: 1.5% of reading + 10cts / 400A: 1.5% of reading + 2cts / 4000A: 1.5% of reading + 2cts |
| Resolution | 40A: 10mA / 400A: 100mA / 4000A: 1A |
| Inrush Function | |
| Range for use | ≥5A pk for the first period of the signal |
| Accuracy | 5% + 0.5A |
| Capture Time | 0.5 to 10 periods of the signal frequency (8 to 160ms at 60Hz) |
| Frequency | |
| Measurement Range | 40Hz: 10.00 to 39.99Hz / 400Hz: 40.0 to 399.9Hz / 4000Hz: 400 to 3999Hz / 40000Hz: 4.00 to 19.99kHz |
| Accuracy | 40Hz - 40kHz: 0.4% of reading + 1ct |
| General | |
| Display | 4 digits, 9999 counts, 3 decimal points, "+" & "-" signs (DC and peak measurement) |
| Operating Temperature | 32° to 122°F (0° to 50°C); 90% RH |
| Storage Temperature | 40° to 158°F (-40° to 70°C); 90% RH |
| Power Source | 9V Alkaline Battery (type IEC 6LF22, 6LR61, or NEDA 1604) |
| Jaw Opening | ≤1.00" (≤26mm) |
| Dimensions | 2.76 x 7.6 x 1.46" (70 x 193 x 37mm) |
| Weight | 9.17 oz (260g) |
| Safety | |
| Safety Rating | EN62020-1, EN61010-2-032, 600V CAT III |
| CE Mark | Yes |
