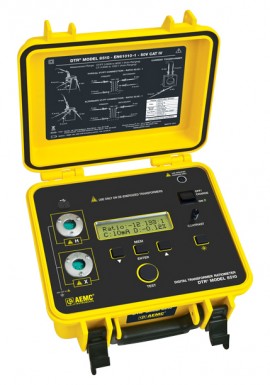

AEMC 8510 DTR Digital Transformer Ratiometer, 110/220V

Model: 8510 | Order No: 2136.50 | UPC: 685338160062

Downloads: datasheet manual

AEMC 8510 DTR Digital Transformer Ratiometer, 110/220V

Model: 8510 | Order No: 2136.50 | UPC: 685338160062

When connected to a non-energized transformer, this digital transformer ratiometer accurately measures primary to secondary turns ratio, while simultaneously displaying polarity and excitation current. The DTR is fully automatic and uses an ANSI/IEEE compliant test method.

Sale Price	$4649.36 CAD
Regular Price	$5224.00 CAD
Availability	1 in Stock
Quantity	Quantity

Traceable Calibration Certificate for your 8510 DTR Digital Transformer Ratiometer

Yes, I would like to add a Traceable Calibration Certificate (Model CERTITTR1) for only $250.00 CAD

Traceable Calibration Certificate for your 8510 DTR Digital Transformer Ratiometer

Yes, I would like to add a Traceable Calibration Certificate (Model CERTITTR1) for only $250.00 CAD

Recommended Accessories

AEMC 2121.54 Replacement Carrying Case for the 6608, 6609, 5231, & 5233

2121.54

AEMC 2121.55 Replacement Leads with Clips for the 6608/6609, Set of 3, Colour Coded

2121.55

AEMC 2136.76 Test Leads and Alligator Clips for the 8500 & 8510, Set of 2, 30ft

2136.76

AEMC Instruments 8510 Offers

The AEMC DTR 8510 Digital Transformer Ratiometer is a portable digital transformer ratiometer designed for on-site testing of power, potential and current transformers. No user calibration, range selection, hand cranking or tedious balancing is required. At each measurement, the DTR automatically self-calibrates and checks for open windings/connections/circuit breakers, short circuits (excess excitation current), incorrect test lead placement, and reverse polarity. Measurements are displayed quickly and accurately.

Features

Ratio Testing: PT/VT from 0.8000:1 to 8000:1 and CT from 0.8000 to 1000.0 (Auto-Ranging)
Tests performed by exciting the primary and reading the secondary; provides safer conditions for the operator on step-down transformers
Continuity test indicates open or loose (high resistance) terminal connections
DC test mode eliminates errors due to magnetic build up
Stores up to 10 primary/secondary nameplate voltages to use in comparing test results
Displays ratio, test current, winding polarity, and deviation from nameplate voltage or ratio
Stores up to 10,000 test results
DataView^® software included which allows configuring the instrument, downloading stored measurements and printing of test results in a report format
Display warns of incorrect lead connection, reverse polarity, open and short circuits

Applications

Power transformers
Potential transformers
Current transformers

AEMC Instruments 8510 Specifications

VT/PT Ratio Range	Auto-Ranging 0.8000:1 to 8000:1
VT/PT Accuracy*	Ratio 0.8000 to 9.9999: ±0.2% of Reading Ratio 10.000 to 999.99: ±0.1% of Reading Ratio 1000.0 to 4999.9: ±0.2% of Reading Ratio 5000.0 to 8000.0: ±0.50% of Reading
CT Ratio Range	Auto-Ranging 0.8000 to 1000.0
CT Accuracy*	Ratio 0.8000 to 1000.0: ±0.5% of Reading
Excitation Signal	VT/PT Mode: 32 Vrms maximum CT Mode: 0 to 1A Auto Level, 0.1 to 5 Vrms max.
Excitation Current Display	Range: 0 to 1000 mA Accuracy: ±2% of Reading + 2mA
Excitation Frequency	70 Hz
Measurement Method	In accordance with ANSI/IEEE C57.12.90-2006
Display	LCD 16 character, 2 line, large format, LED backlight, day/night visible
Languages Supported	English, Spanish, French, Italian, German, Portuguese
Communication	Optically isolated USB 2.0
Data Storage	Stores up to 10,000 complete measurements
*73.4°F ±9°F (23°C ± 5°C), 50 to 70% RH, full battery charge, no external fields or noise.

Click here for complete specifications on the AEMC Instruments 8510

What's included with the AEMC Instruments 8510

DTR Digital Transformer Ratiometer
NiMH Batteries (Installed)
115 V Power Cord
2 x 15' (4.6 m) Leads
10' (3 m) USB Cable
External Battery Charger (90-264 V AC, 50/60 Hz)
DataView Software
Manual
Soft Carrying Case

AEMC 8510 DTR Digital Transformer Ratiometer: Overview

This video goes over the digital transformer ratiometer's features and functionality. Additionally, when connected to a non-energized transformer, this instrument accurately measures primary to secondary turns ratio, while simultaneously displaying polarity and excitation current.

datasheet for the AEMC 8510 DTR Digital Transformer Ratiometer, 110/220V manual for the AEMC 8510 DTR Digital Transformer Ratiometer, 110/220V

Click on a category to view a selection of compatible accessories with the AEMC 8510 DTR Digital Transformer Ratiometer, 110/220V.

Carrying Cases

AEMC 2121.54 Replacement Carrying Case for the 6608, 6609, 5231, & 5233 2121.54

Replacement for the AEMC 6608, 6609, 5231, 5233, and Digital Flexprobe Series.

Test Leads

AEMC 2121.55 Replacement Leads with Clips for the 6608/6609, Set of 3, Colour Coded 2121.55

Set or 3 replacement leads, color-coded (1000V CAT III 10A) with clips. For use with the AEMC 6608 & 6609.

AEMC 2136.76 Test Leads and Alligator Clips for the 8500 & 8510, Set of 2, 30ft 2136.76

Set of 2, 30ft leads. For use with the DTR 8500 & 8510. Replacement for the AEMC 2118.47.

AEMC 2136.77 Replacement Test Leads for the 8500/8510, Set of 2, 15ft 2136.77

Set of 2 replacement Leads, 15ft. For use with the DTR 8500 & 8510.

Power Supplies

AEMC 2136.78 Replacement Rechargeable Batteries for the DTR 8510, Set of 2 2136.78

Set of 2 12V NiMH Rechargeable Batteries for the AEMC DTR 8510.

AEMC 2136.79 Replacement Battery Charger for the DTR 8510, 110/240V 2136.79

110 to 240V Battery charger for the AEMC DTR 8510.
