Key Features

Standard Watts Up

• 16 values displayed
• Cost displayed
• 1.5% accuracy
• World-wide compatibility

Watts Up Pro

• Internal Memory for over 2,000 Records (over 30,000 if just watts)
• USB interface and logging capability
• 18 values displayed
• Cost displayed
• 1.5% accuracy
• World-wide compatibility
• PC interface
• Software included
• Real-time logging capable (additional software required)
• User selectable and automatic interval setting

Watts Up Pro ES

• Extra Internal Memory for over 8,000 records (over 120,000 if just watts)
• USB interface and logging capability
• 18 values displayed
• Cost displayed
• 1.5% accuracy
• World-wide compatibility
• PC interface
• Software included
• Real-time logging capable (additional software required)
• User selectable and automatic interval setting

Specifications

Standard Watts Up

• Accuracy: +/- 3% (loads above 10 watts), +/-5% (loads below 10 watts)
• Power Requirements: 120 Volts AC, 60 Hz, 15 amps (Below 60 watts, amps and power factor lose accuracy)
• Dimensions: 18 cm long (7") x 10 cm wide (4") x 5 cm "2") thick
• Weight: 0.7 kg (1.5 lbs)
• Approvals: UL (C), UL (US)
• Manufacturer Warranty: 1 Year
• Higher ratings of 100-277v, 50/60Hz, and 20 amps require appropriate country specific cord set and receptacle, and is NOT UL listed.  Internal electronics are the same.
• Mains supply voltage fluctuations not to exceed +/- 10% of the nominal voltage
• Rate can be entered from $0.001 to $85.00 per kilowatt hour, in tenths of a penny
• Input is via 6' electric cord, output is via outlet on top of meter
• Indoor use only

Watts Up Pro

• Accuracy: +/- 3% (loads above 10 watts), +/-5% (loads below 10 watts)
• Power Requirements: 120 Volts AC, 60 Hz, 15 amps (Below 60 watts, amps and power factor lose accuracy)
• Dimensions: 18 cm long (7") x 10 cm wide (4") x 5 cm "2") thick
• Weight: 0.7 kg (1.5 lbs)
• Approvals: UL (C), UL (US)
• Manufacturer Warranty: 1 Year
• Higher ratings of 100-277v, 50/60Hz, and 20 amps require appropriate country specific cord set and receptacle, and is NOT UL listed.  Internal electronics are the same.
• USB interface
• Mains supply voltage fluctuations not to exceed +/- 10% of the nominal voltage
• Rate can be entered from $0.001 to $85.00 per kilowatt hour, in tenths of a penny
• Input is via 6' electric cord, output is via outlet on top of meter
• Indoor use only

Watts Up Pro ES

• 120 v, 60 Hz, 15 amps
• Higher ratings of 100-250v, 50/60Hz, and 15 amps require the universal outlet (UO) version. The electronics in the meter are capable of 20 amps but the cord and receptacle have different ratings. Verify the rating on the cordset you are purchasing.
• +/- 1.5%, + 3 counts of the displayed value
• Below 60 watts, amps and power factor lose accuracy
• USB interface
• Mains supply voltage fluctuations not to exceed +/- 10% of the nominal voltage
• Rate can be entered from $0.001 to $85.00 per kilowatt hour, in tenths of a penny
• Input is via 6' electric cord (USA style only), output is via outlet on top of meter
• Indoor use only
• Dimensions: 7" x 4" x 2" (18cm x 10cm x 5cm)
• Weight: 1.5 lbs (0.7 kg)
• UL listed to standard UL 610010-1, and CAN CAS/C22.2 61010-1
• UO version also CE marked
• UL certification requires the following statement:
• Altitude up to 2000 meters
• Temperature 5°C to 40°C
• Maximum relative humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C
• Installation Category II

Specifications

Standard Watts Up

• Accuracy: +/- 3% (loads above 10 watts), +/-5% (loads below 10 watts)
• Power Requirements: 120 Volts AC, 60 Hz, 15 amps (Below 60 watts, amps and power factor lose accuracy)
• Dimensions: 18 cm long (7") x 10 cm wide (4") x 5 cm "2") thick
• Weight: 0.7 kg (1.5 lbs)
• Approvals: UL (C), UL (US)
• Manufacturer Warranty: 1 Year
• Higher ratings of 100-277v, 50/60Hz, and 20 amps require appropriate country specific cord set and receptacle, and is NOT UL listed.  Internal electronics are the same.
• Mains supply voltage fluctuations not to exceed +/- 10% of the nominal voltage
• Rate can be entered from $0.001 to $85.00 per kilowatt hour, in tenths of a penny
• Input is via 6' electric cord, output is via outlet on top of meter
• Indoor use only

Watts Up Pro

• Accuracy: +/- 3% (loads above 10 watts), +/-5% (loads below 10 watts)
• Power Requirements: 120 Volts AC, 60 Hz, 15 amps (Below 60 watts, amps and power factor lose accuracy)
• Dimensions: 18 cm long (7") x 10 cm wide (4") x 5 cm "2") thick
• Weight: 0.7 kg (1.5 lbs)
• Approvals: UL (C), UL (US)
• Manufacturer Warranty: 1 Year
• Higher ratings of 100-277v, 50/60Hz, and 20 amps require appropriate country specific cord set and receptacle, and is NOT UL listed.  Internal electronics are the same.
• USB interface
• Mains supply voltage fluctuations not to exceed +/- 10% of the nominal voltage
• Rate can be entered from $0.001 to $85.00 per kilowatt hour, in tenths of a penny
• Input is via 6' electric cord, output is via outlet on top of meter
• Indoor use only

Watts Up Pro ES

• 120 v, 60 Hz, 15 amps
• Higher ratings of 100-250v, 50/60Hz, and 15 amps require the universal outlet (UO) version. The electronics in the meter are capable of 20 amps but the cord and receptacle have different ratings. Verify the rating on the cordset you are purchasing.
• +/- 1.5%, + 3 counts of the displayed value
• Below 60 watts, amps and power factor lose accuracy
• USB interface
• Mains supply voltage fluctuations not to exceed +/- 10% of the nominal voltage
• Rate can be entered from $0.001 to $85.00 per kilowatt hour, in tenths of a penny
• Input is via 6' electric cord (USA style only), output is via outlet on top of meter
• Indoor use only
• Dimensions: 7" x 4" x 2" (18cm x 10cm x 5cm)
• Weight: 1.5 lbs (0.7 kg)
• UL listed to standard UL 610010-1, and CAN CAS/C22.2 61010-1
• UO version also CE marked
• UL certification requires the following statement:
• Altitude up to 2000 meters
• Temperature 5°C to 40°C
• Maximum relative humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C
• Installation Category II

What's included with the ThinkTank 82756

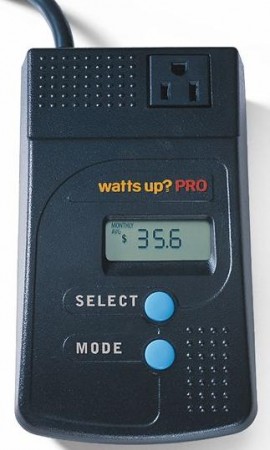

• Watts Up Pro ES Portable Plug-In Power Meter
