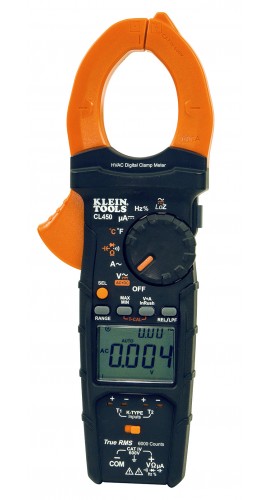

Klein Tools CL450 HVAC/R Clamp Meter with differential temperature

Model: CL450 | UPC: 092644690631

Be the first to review this product

Klein Tools CL450 HVAC/R Clamp Meter with differential temperature-

Downloads: datasheet

More Klein Tools Products

Ask an Expert

Klein Tools CL450 HVAC/R Clamp Meter with differential temperature

Model: CL450 | UPC: 092644690631

Be the first to review this product

The clamp meter measures AC/DC voltage up to 1000 V, 600 A AC current, 60 MΩ resistance, DC millivolts, and microamps. It offers differential temperature, digital temperature calibration, inrush current, and various other functions for HVAC applications.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our AC/DC Clamp Meters category for similar products.

Or let's do a search and help you find what you need:

Klein Tools CL450 Offers

Features

Electrical Tester measures both AC/DC current via the clamp
Non-contact voltage tester integrated into the clamp jaw
High-visibility reverse contrast LCD display for improved viewability in all ambient lighting conditions
Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
Measures AC/DC voltage, DC micro-Amp current, resistance, continuity, frequency, duty-cycle, capacitance and tests diodes via the test leads
Measures temperature with a K-Type thermocouple probe
Max/Min, Rel/Zero and Data Hold capability
Auto power off after five minutes to conserve battery life
Low battery indicator and easily accessible battery compartment
Built to withstand a 6.6' (2 m) drop
CAT III 600V, Class 2, Double insulation safety rating
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

Applications

Measures AC/DC Current, AC/DC Voltage, continuity, resistance, DC micro-Amp Current, Capacitance, Frequency, Duty Cycle, Temperature, and Tests Diodes
Detects Presence of AC Voltages with Integrated Non-Contact Voltage Tester

Klein Tools CL450 Specifications

Drop Protection	6.6' (2 m)
Display	4000 count reverse contrast LCD
Voltage	600 V AC/DC
Frequency	0 Hz to 60 kHz for 8 V to 220 V AC RMS
Ohms (Resistance)	Range 40 MΩ
Voltage	AC: 600 V DC: 600 V
Temperature Range	-40 to 1832°F (-40 to 1000°C)
DC Micro-Amp	200µ A
Dimensions	8.66 x 1.61 x 3.03" (22 x 4.1 x 7.7 cm) Jaw size: opens to 1.8" (4.6 cm)
Weight	0.51 lbs (8.3 oz)

Click here for complete specifications on the Klein Tools CL450

What's included with the Klein Tools CL450

Clamp Meter
Test Leads
Thermocouple Probe
Instruction Manual
3 x 1.5 V AAA Batteries
