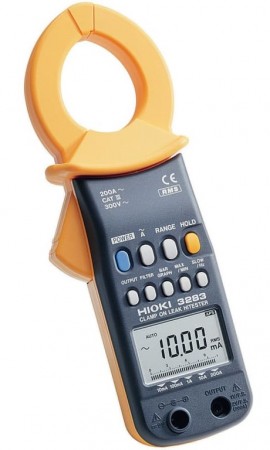

Hioki 3283-20 Clamp-On Leak HiTester, 10 µA, CE marked

Model: 3283-20

Hioki 3283-20 Clamp-On Leak HiTester, 10 µA, CE marked-

Downloads: datasheet manual

More Hioki Products

Ask an Expert

Hioki 3283-20 Clamp-On Leak HiTester, 10 µA, CE marked

Model: 3283-20

The leakage current clamp meter has output capabilities for advanced monitoring on recording equipment, and complies with type a standards to measure uninsulated hazardous live conductors such as busbars. Features a 10mA to 200A range and 10μA resolution.

The leakage current clamp meter has output capabilities for advanced monitoring on recording equipment, and complies with type a standards to measure uninsulated hazardous live conductors such as busbars. Features a 10mA to 200A range and 10μA resolution.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Hioki CM4371 AC/DC True RMS Clamp Meter, 600 A-

Hioki CM4371 AC/DC True RMS Clamp Meter, 600 A

Model: CM4371-90

Use this clamp meter to measure the AC/DC current of wires and devices. The versatile tool can measure voltage, amperage, resistance and frequency.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Hioki 3283-20 Offers

Features

  • Measure leak current using highly sensitive 10μA resolution (at 10.00 mA range)
  • Indicate 50/60 Hz leak current components with the filtering function
  • CE Marked, without manitor/analog output
  • EN 61010-2-032:2012 Type A to measure uninsulated hazardous live conductors such as busbars
  • CAT III 300 V

Hioki 3283-20 Specifications

AC Current Range 10.00 m/100.0 m/1.000/10.00/200.0 A
5 ranges, (40 Hz to 2 kHz, True RMS)
Basic accuracy: ±1.0 % rdg. ±5 dgt.
Guaranteed accuracy: from 1.00 mA
Frequency Range 30.0 to 1000 Hz, 2 ranges
Basic accuracy: ±0.3 % rdg. ±1 dgt.
Crest Factor 2.5 or less (1.5 at 200 A range)
Filter Function Cut off frequency at filter ON: 180 Hz (-3dB)
Power Supply 1 x 6LR61 (Stacked alkaline battery), or 6F22 (stacked manganese battery),
Continuous use: 40 hours (using 6F22)
Display LCD, max. 2000 dgt.
Display refresh rate: 4 times/s (Fast), 1 time/3s (Slow), 4 times/s (bar graph)
Core Jaw Diameter φ1.57" (40 mm)
Other Functions Max./Min./Average value record, data hold, auto power off
Dimensions 2.44 x 8.86 x 1.54" (62 x 225 x 39 mm)
Weight 14.1 oz (400 g)
Click here for complete specifications on the Hioki 3283-20

What's included with the Hioki 3283-20

  • Clamp-on Leak HiTester
  • Hand Strap
  • Carrying Case
  • Battery
  • Instruction Manual
datasheet for the Hioki 3283-20 Clamp-On Leak HiTester, 10 µA, CE marked manual for the Hioki 3283-20 Clamp-On Leak HiTester, 10 µA, CE marked

Ask a question about Hioki 3283-20 Clamp-On Leak HiTester, 10 µA, CE marked

Customer Reviews for the Hioki 3283-20

Hioki 3283-20 Offers

Features

  • Measure leak current using highly sensitive 10μA resolution (at 10.00 mA range)
  • Indicate 50/60 Hz leak current components with the filtering function
  • CE Marked, without manitor/analog output
  • EN 61010-2-032:2012 Type A to measure uninsulated hazardous live conductors such as busbars
  • CAT III 300 V
Show More...

Hioki 3283-20 Specifications

AC Current Range 10.00 m/100.0 m/1.000/10.00/200.0 A
5 ranges, (40 Hz to 2 kHz, True RMS)
Basic accuracy: ±1.0 % rdg. ±5 dgt.
Guaranteed accuracy: from 1.00 mA
Frequency Range 30.0 to 1000 Hz, 2 ranges
Basic accuracy: ±0.3 % rdg. ±1 dgt.
Crest Factor 2.5 or less (1.5 at 200 A range)
Filter Function Cut off frequency at filter ON: 180 Hz (-3dB)
Power Supply 1 x 6LR61 (Stacked alkaline battery), or 6F22 (stacked manganese battery),
Continuous use: 40 hours (using 6F22)
Display LCD, max. 2000 dgt.
Display refresh rate: 4 times/s (Fast), 1 time/3s (Slow), 4 times/s (bar graph)
Core Jaw Diameter φ1.57" (40 mm)
Other Functions Max./Min./Average value record, data hold, auto power off
Dimensions 2.44 x 8.86 x 1.54" (62 x 225 x 39 mm)
Weight 14.1 oz (400 g)
Click here for complete specifications on the Hioki 3283-20

What's included with the Hioki 3283-20

  • Clamp-on Leak HiTester
  • Hand Strap
  • Carrying Case
  • Battery
  • Instruction Manual
datasheet for the Hioki 3283-20 Clamp-On Leak HiTester, 10 µA, CE marked manual for the Hioki 3283-20 Clamp-On Leak HiTester, 10 µA, CE marked

Ask a question about Hioki 3283-20 Clamp-On Leak HiTester, 10 µA, CE marked

Customer Reviews for the Hioki 3283-20
