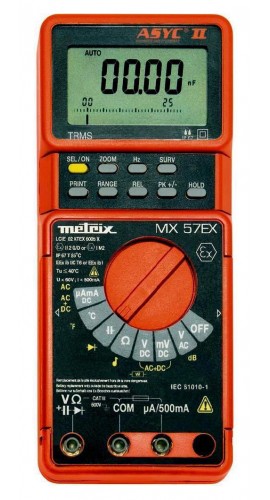

This intrinsically safe digital multimeter is designed for use in dangerous or explosive atmospheres. It is Intrinsically safe, True RMS and has 50,000-count, 0.025% accuracy.
This intrinsically safe digital multimeter is designed for use in dangerous or explosive atmospheres. It is Intrinsically safe, True RMS and has 50,000-count, 0.025% accuracy.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Digital Multimeters category for similar products.
Or let's do a search and help you find what you need:
This meter is considered as a passive device without inductive or capacitive issues that are problematic in dangerous or explosive environments. It provides high functionality in a unique case designed for enhanced safety, reliability, ease-of-maintenance and protection from contaminants.
Features
Applications
| Continuity | 10 to 20 Ω |
| Response Time | 1 ms |
| Diode Test | 0 to 2 V |
| Test Current | 1 mA ± 20% |
| Capacitance | 50 nF to 50 mF |
| Accuracy | 1% of Reading ±2cts |
| Frequency | 0.62 Hz to 500 kHz |
| Accuracy | 0.03% of Reading ±2cts |
| Temperature Range (User selectable in °F or °C) | -328 to 1472°F (-200 to 800°C) |
| Temperature Sensor | PT100/PT1000 |
| Digital Display | 50,000-count |
| Analog Bargraph | 34-segment |
| Safety Rating | NF EN 50014, EN 50014: 1992; NF EN 50020, EN 50020: 1994 |
| Agency Approval | IECEx LC107.0010 X, LCIE 02 ATEX 6005 X, ExII 2 G D or ExI M2, Ex ib I, Ex ib IIC T5 or T4 or T3, Ex ibD 21 T |
